Ê Disconnect all cables from the defective SAS backplane.
7.2.9.2 Removing the 2.5-inch HDD bay top cover
I The 2.5-inch HDD front panel does not need to be removed in order to
replace a 2.5-inch HDD SAS backplane. In the figures, the front panel
has been removed for illustration purposes only.

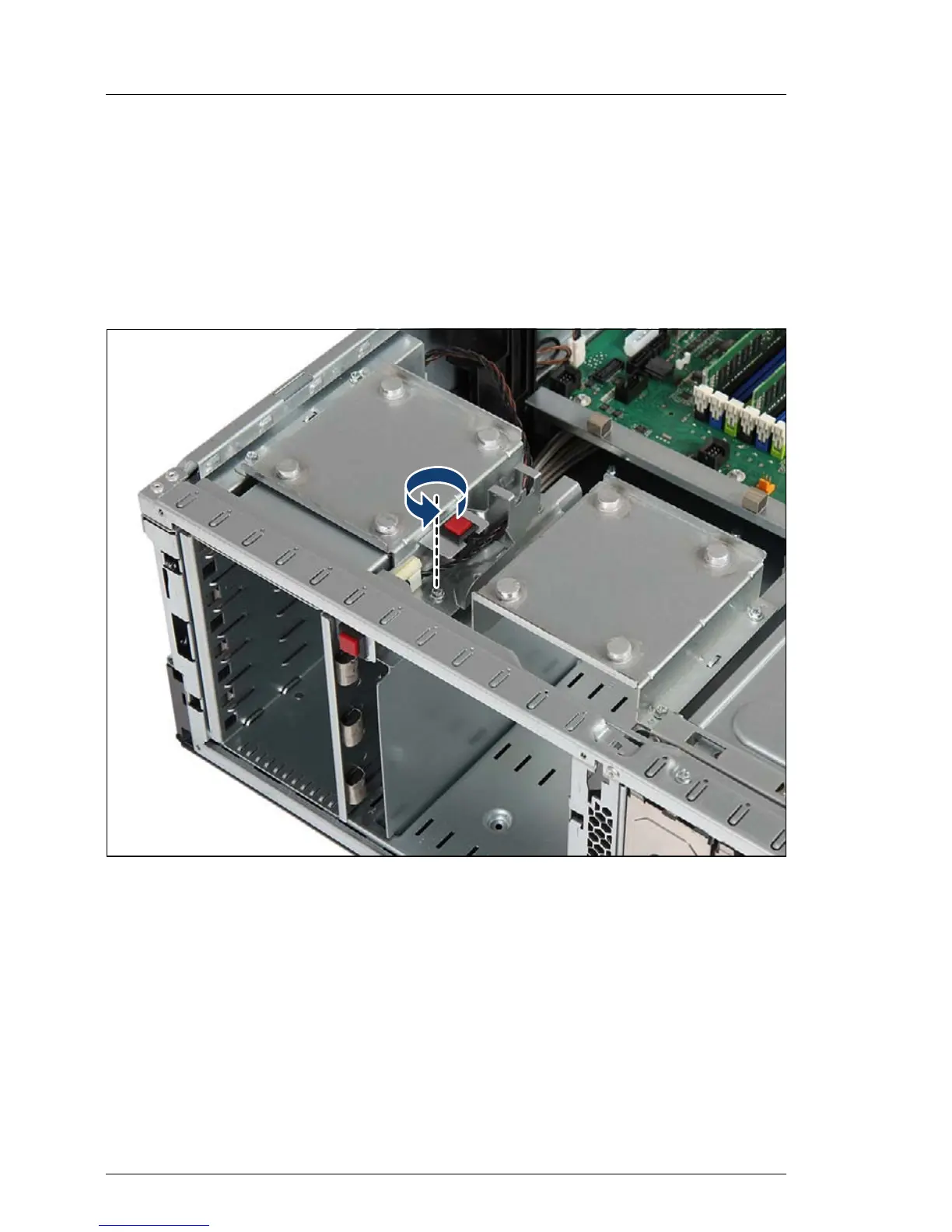

Figure 115: Removing the intrusion switch holder (A)
Ê Remove one screw from the intrusion switch holder as shown.
To Next Page
