Ê "Disconnecting the server from the mains" on page 63
Ê When working on a rack-mounted server:
"Extending / removing the server from the rack" on page 64
Ê Open the side / top cover as described in section "Opening the server" on
page 68.
Ê "Removing the system air duct" on page 81
14.2.2.2 Removing the UFM board

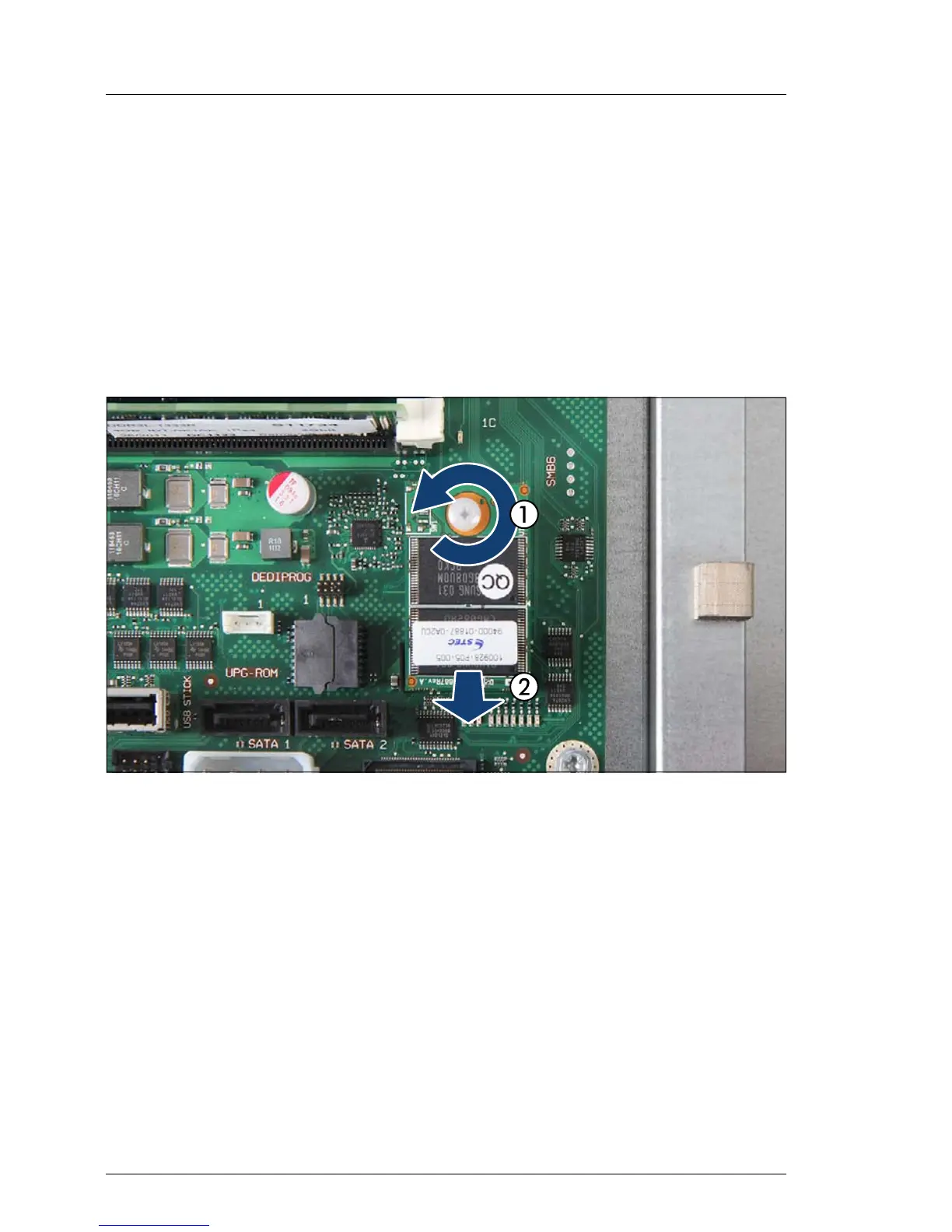

Figure 511: Removing the UFM board (A)
Ê Remove the nylon screw on the defective UFM board (1).
Ê Disconnect and remove the defective UFM board (2).
