Ê When working on a rack-mounted server:
"Extending / removing the server from the rack" on page 64
Ê Open the side / top cover as described in section "Opening the server" on
page 68.
Ê "Removing the system air duct" on page 81
14.4.1.2 Installing the onboard SAS enabling key

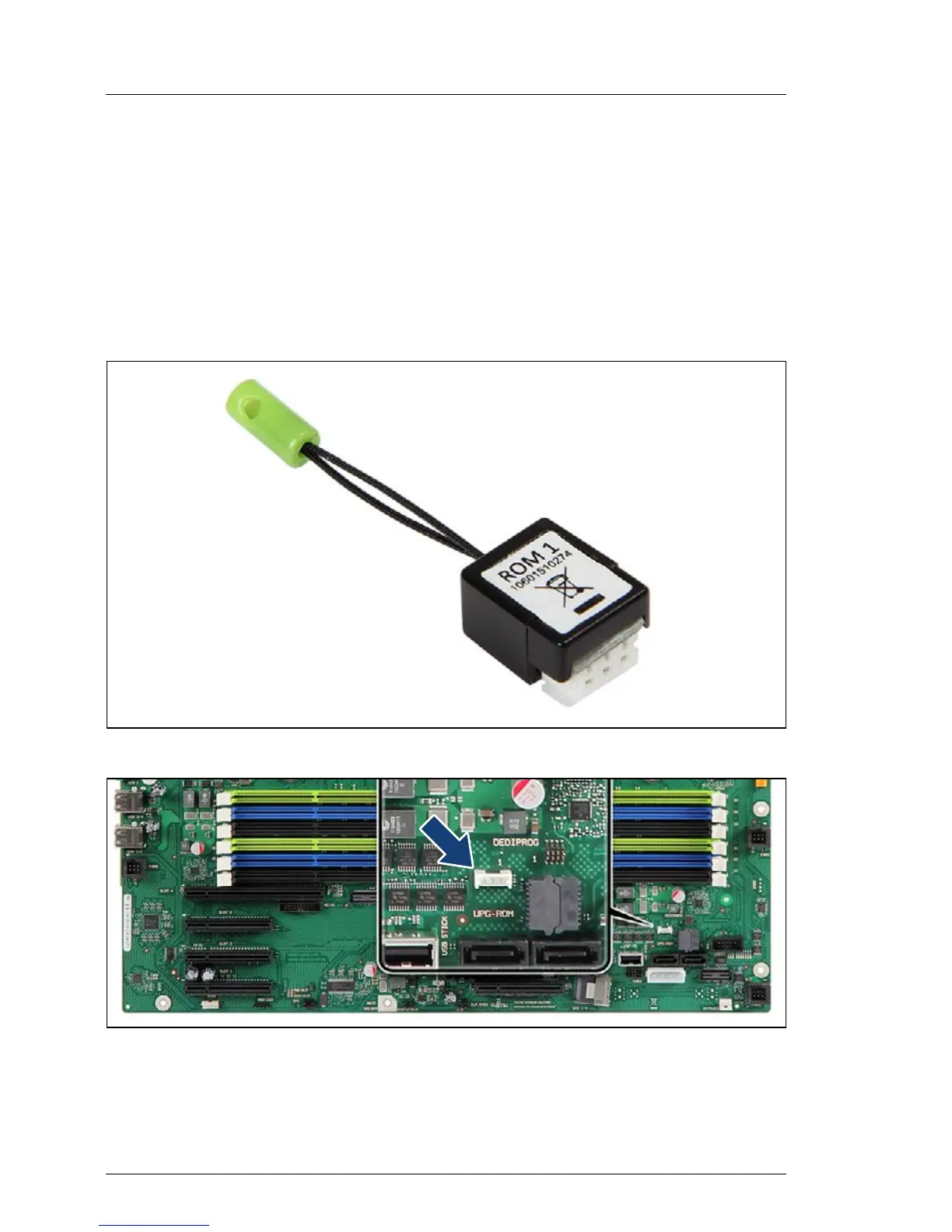

Figure 526: Onboard SAS enabling key (10601510274 / SRT:PN-EP1-1000-11-05051)
Figure 527: Onboard SAS enabling key mounting location
Ê Locate the onboard SAS enabling key mounting location on the system
board.
