368 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Expansion cards and backup units
9.3.1.3 Removing PCI slot bracket

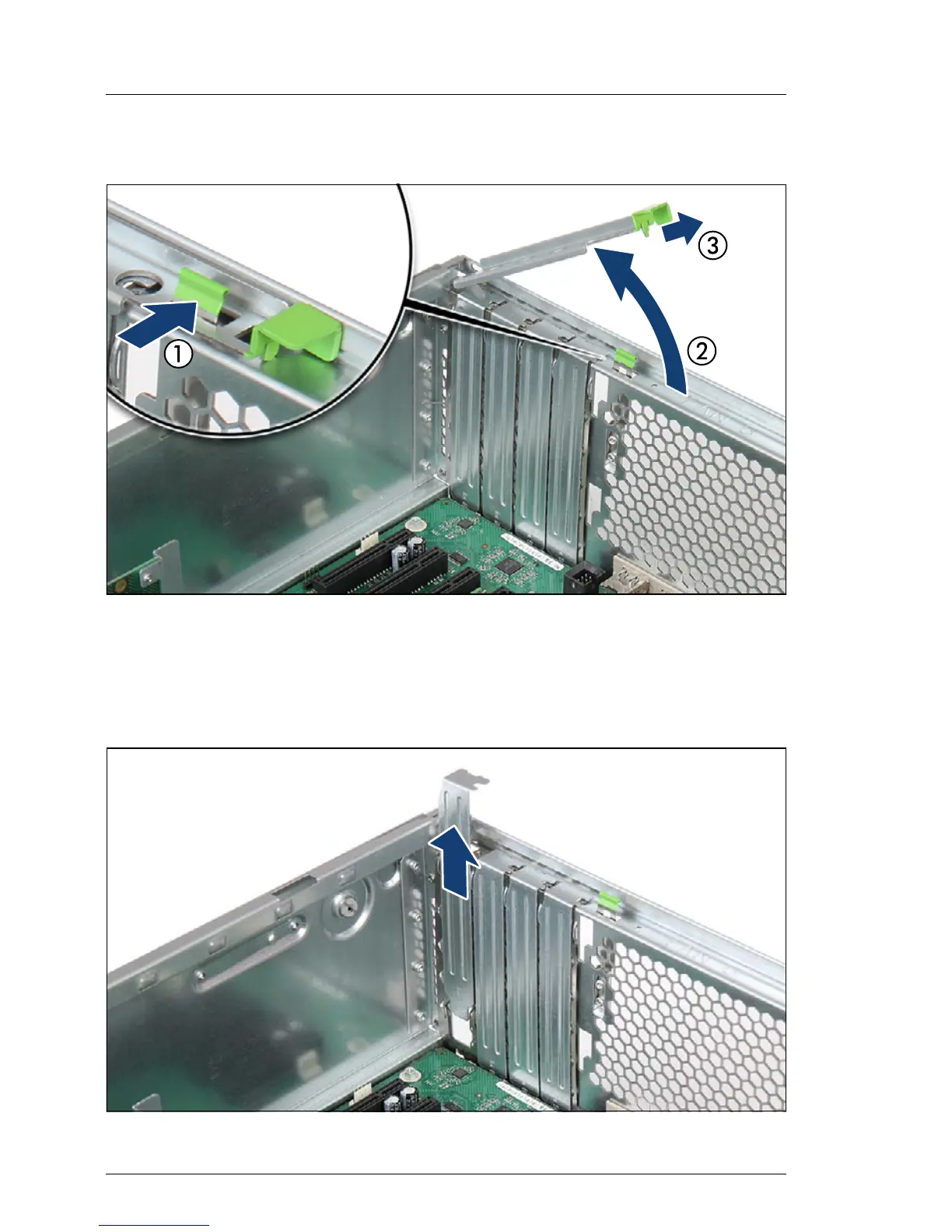

Figure 253: Removing the PCI slot bracket (A)
Ê Press out on the locking latch to disengage the PCI slot bracket locking bar
(1, see close-up).
Ê Fold up (2) and remove (3) the PCI slot bracket locking bar.
Figure 254: Removing the PCI slot bracket (B)
