TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 545
Accessible drives
12.2.4.4 SAS backup drives with SAS power supply
IThis description applies to the following LTO drive types:
–LTO4 (IBM)
–LTO5
–LTO6
Ê Connect the SAS and power cables according to your configuration as
shown in the tables above.

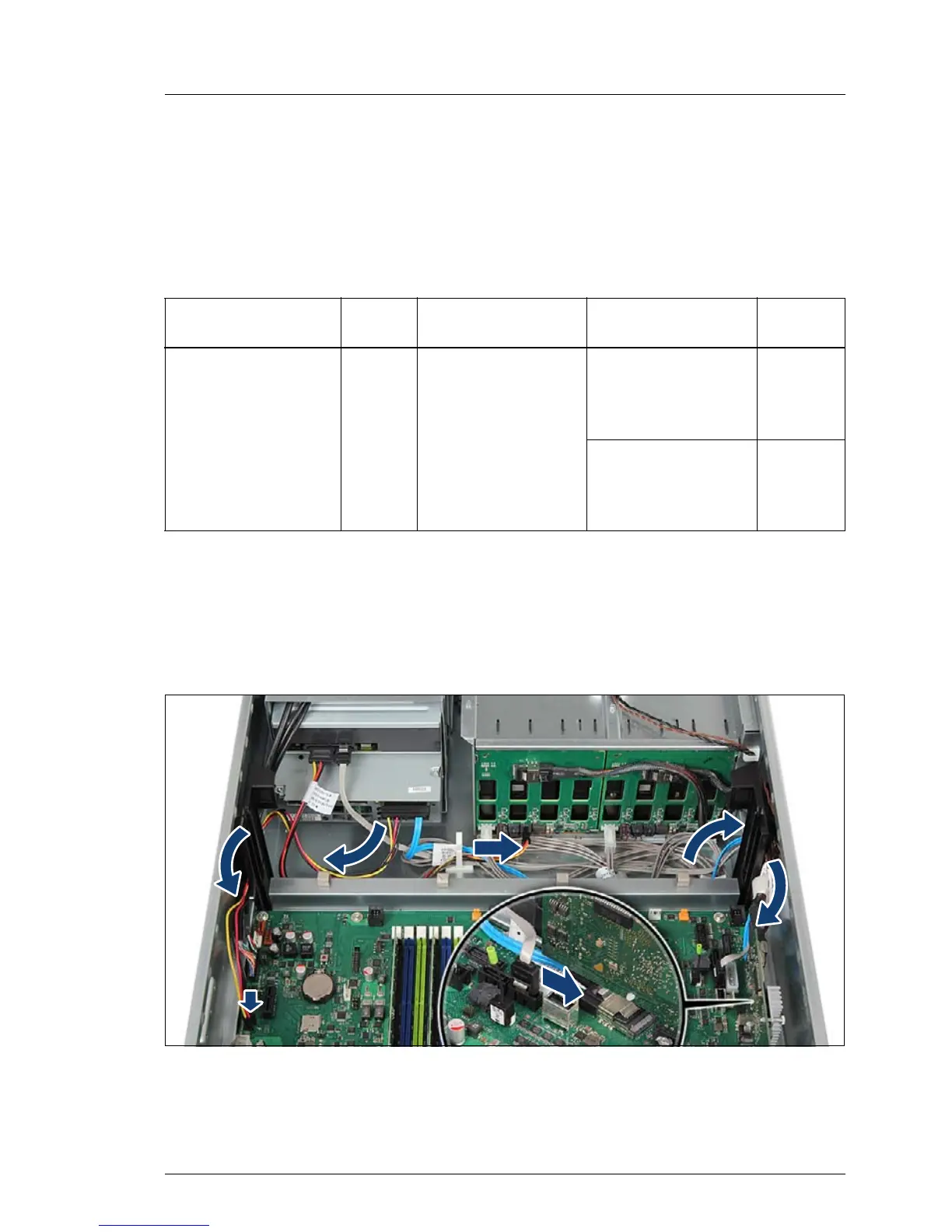

Figure 417: Routing cables
Ê Run the SAS and power cables through the cable clamps (see arrows) as
shown.
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
SAS Backup Drive
SAS / Power cable
Y3969-V401
7
SAS backup drive
(P1, 22-pin
connector)
System board
connector SAS 1-4
(P2, 36-pin Mini SAS
connector)
1
1
Requires installed Onboard SAS enabling key (see section "Installing the onboard SAS
enabling key" on page 673)
16.2.1
System board
connector PWR
HDD / ODD
(P1, 4-pin connector)
16.2.3
