13.3.2.2 Removing and preparing the front panel module
Ê "Removing front panel cables from the system board" on page 603
Ê "Removing the front panel module" on page 605
Ê "Removing the front panel module cover" on page 608
13.3.2.3 Removing the VGA connector

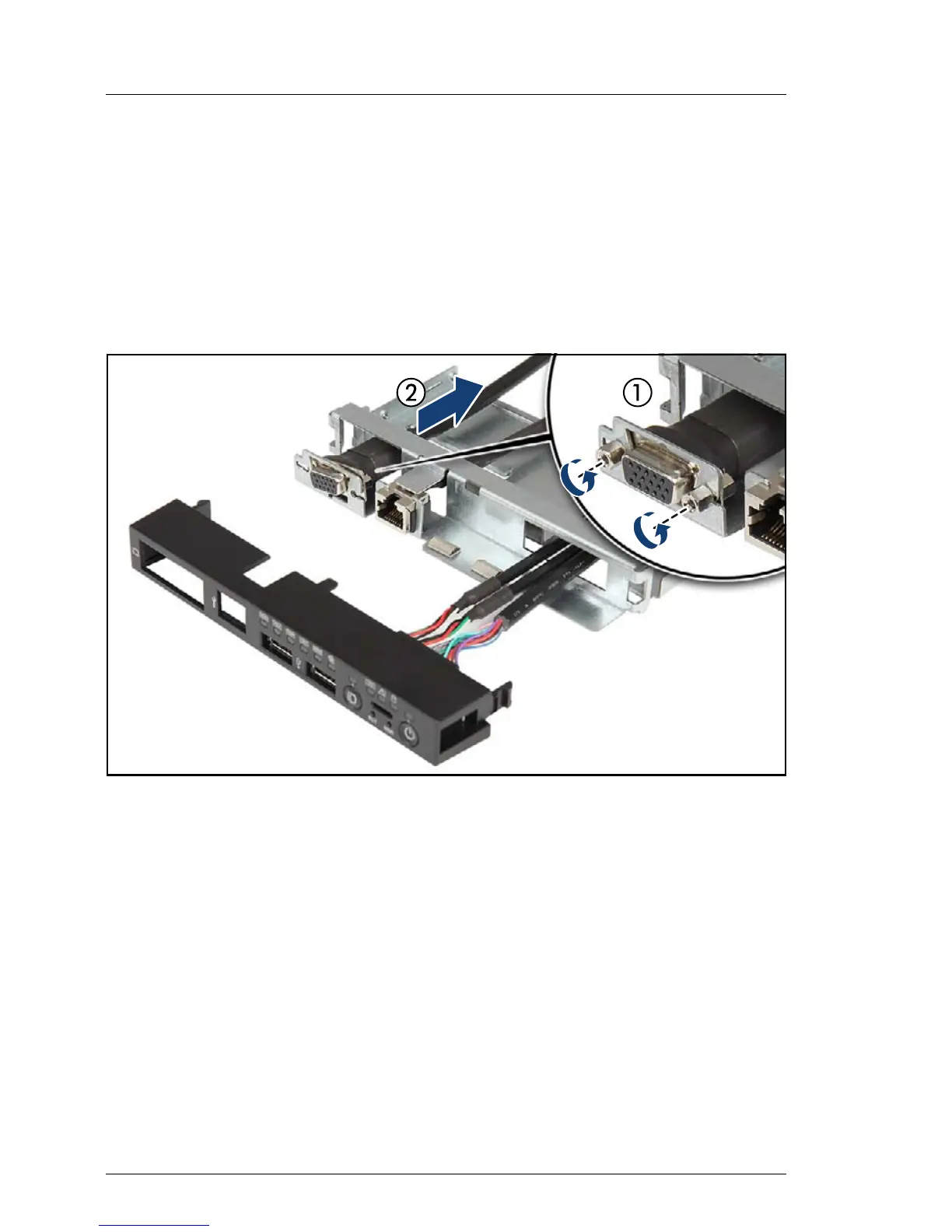

Figure 504: Removing the front panel connector
Ê Remove the two hexagon bolts from the front VGA connector (1, see close-
up).
Ê Pull the front VGA cable out through the mounting bracket on the front panel
frame and remove it (2).
