8.2.1.2 Removing system fan modules
V CAUTION!
Do not remove the air duct in order to replace fan modules!
In the below figures, the air duct has only been removed for illustration
purposes.

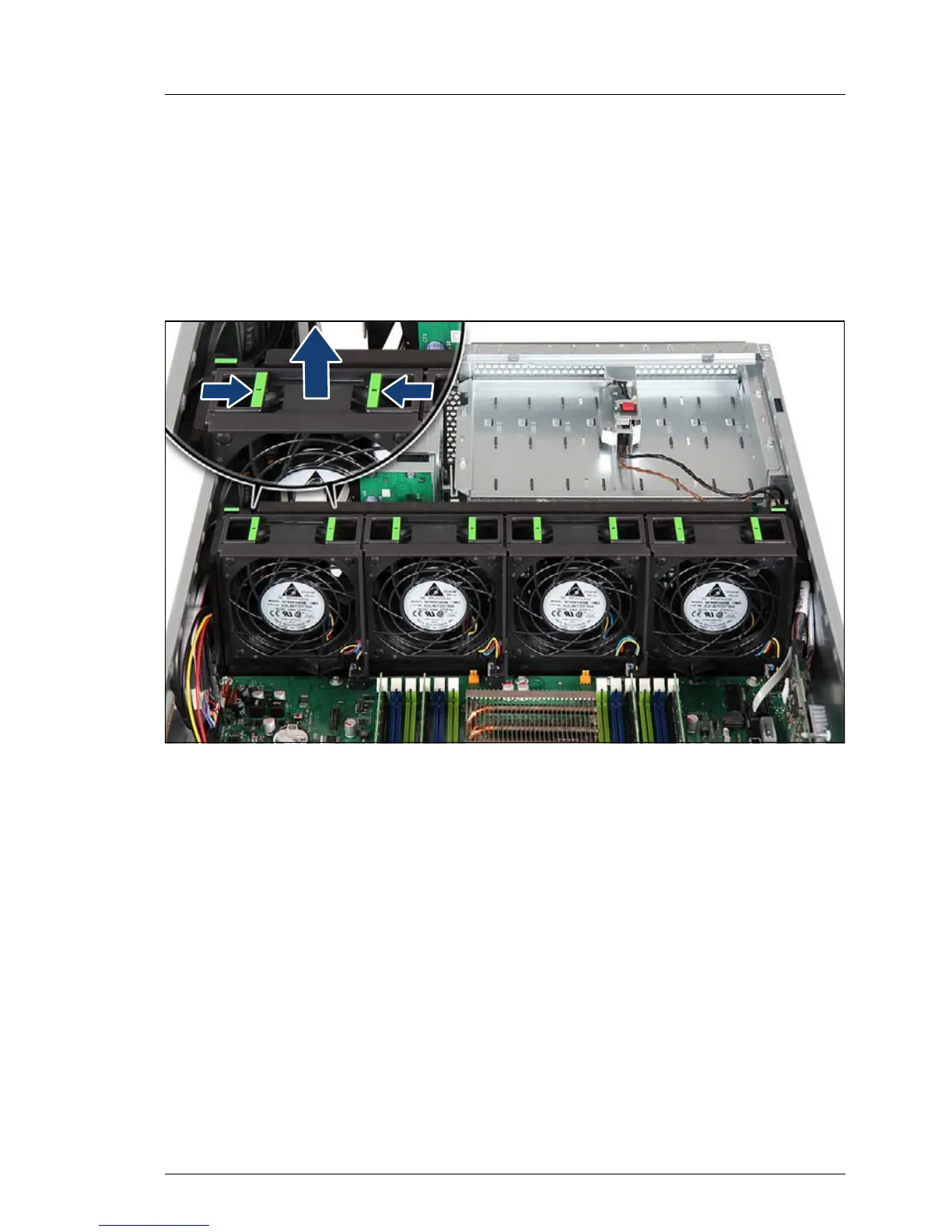

Figure 217: Removing a system fan module (A)
Ê Have the replacement fan module ready for immediate installation after the
defective module has been removed.
Ê Pinch the two green locking tabs on the defective fan module (see close-up)
while pulling up.
