250 Upgrade and Maintenance Manual TX300 S8 / RX350 S8

Hard disk drives / solid state drives

7.3.5 12x 3.5-inch HDDs (3 SAS backplanes)

7.3.5.1 Mounting order for 3.5-inch HDDs

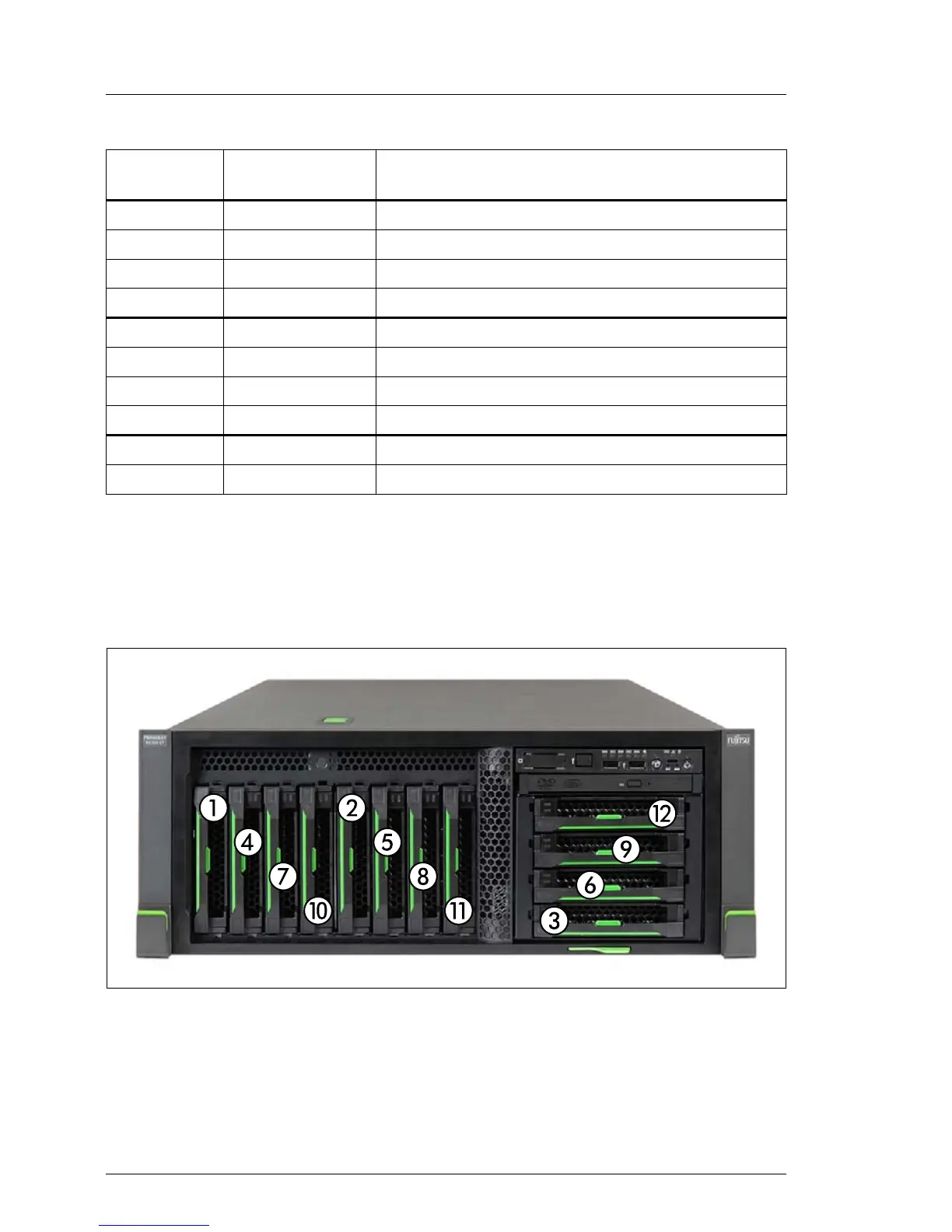

Figure 156: Mounting order: up to 12x 3.5-inch HDDs (Rack)

Position

Logical drive

number

ServerView RAID Manager display name

[1] 0 HDD vendor name (1:0)

[2] 1 HDD vendor name (1:1)

[3] 2 HDD vendor name (1:2)

[4] 3 HDD vendor name (1:3)

[5] 4 HDD vendor name (1:4)

[6] 5 HDD vendor name (1:5)

[7] 6 HDD vendor name (1:6)

[8] 7 HDD vendor name (1:7)

[9] 8 HDD vendor name (1:8)

[10] 9 HDD vendor name (1:9)
