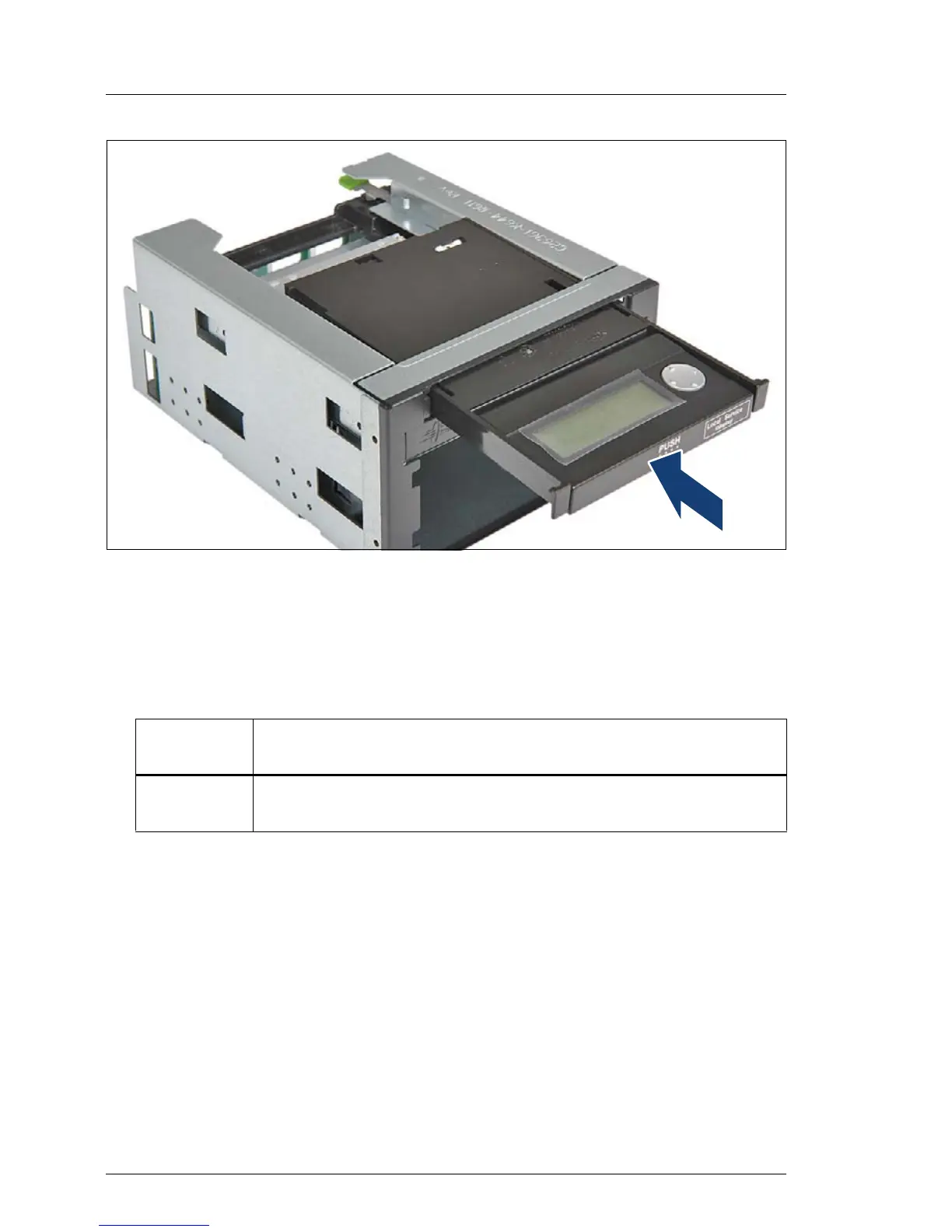

Figure 445: Inserting the LSD module
Ê Insert the LSD module into its installation bay and push in until it locks in
place.
Ê Before inserting the 2x 3.5-inch HDD extension box into the chassis,
connect the LSD cable to the LSD module:
12.6.1.4 Removing accessible drive dummy covers
Removing accessible drive filler covers
Ê Remove accessible drive filler covers from installation bays 2 and 3 as
described in section "Accessible drive filler covers" on page 94.
V CAUTION!
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
Cabling
list no.
1
1
The cabling list numbers refers to section "List of used cables" on page 736.
Cable
14
LSD cable
(T26139-Y3718-V301)
