Fujitsu PRIMERGY TX300 S8 - Tower Model; Unlocking the Server

72 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Basic hardware procedures
Ê Press up on the plastic frame to disengage the bottom locking latch (1).
Ê Detach and remove the rack front cover to the front (2).
4.5.2 Tower model
4.5.2.1 Unlocking the server

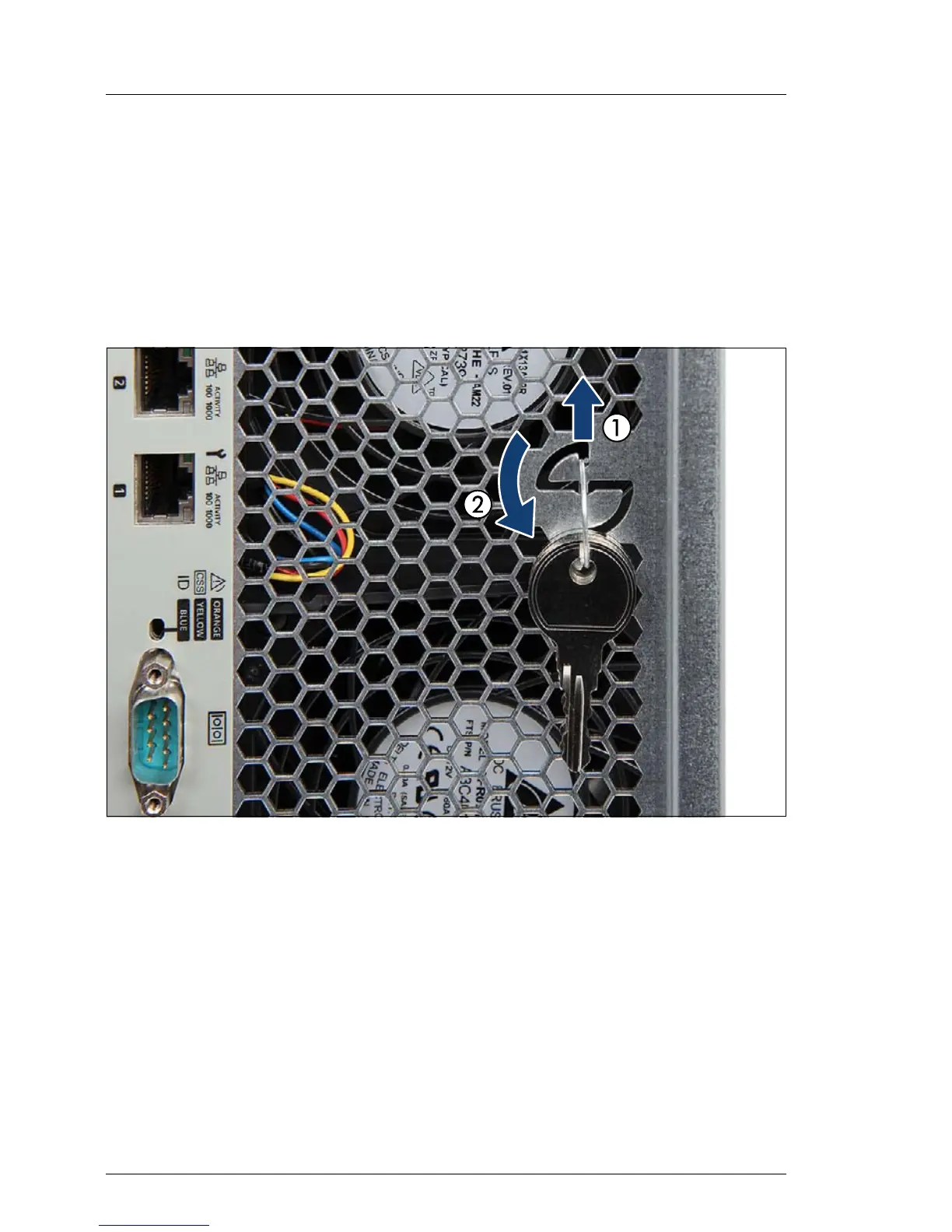

Figure 18: Removing the key (A)
Ê Lift the key ring to unlatch it (1).
Ê Turn the key ring counter-clockwise by 90 degrees (2).
