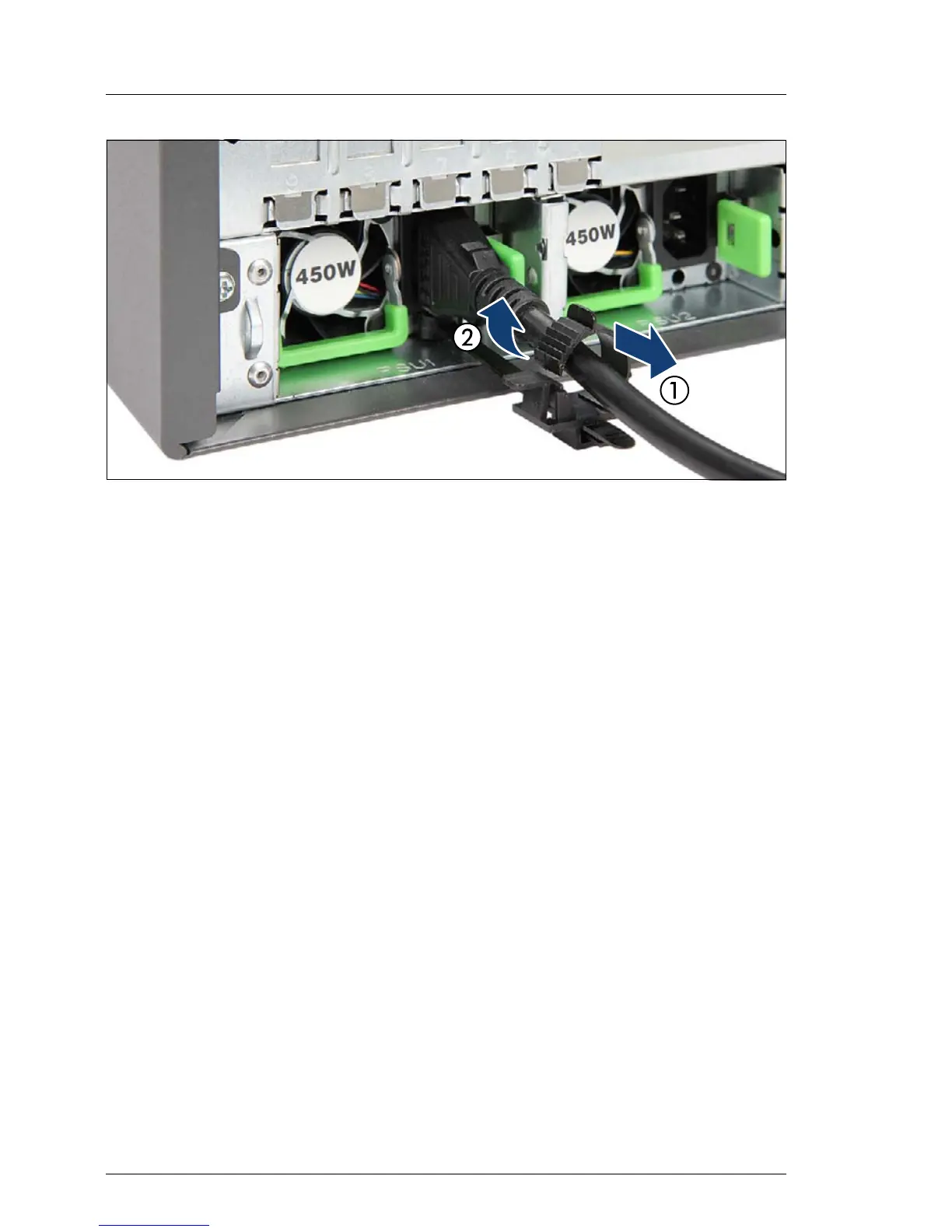

Figure 9: Removing the power cord from the PSU cable bracket (B)
Ê Pull the loop on the PSU cable bracket further back as shown (1).
Ê Remove the power cord from the PSU cable bracket (2) and disconnect it
from the PSU.
4.4 Extending / removing the server from the
rack
I In most cases maintenance tasks can be performed while the server is
extended from the rack. However, depending on accessibility or security
guidelines, it may make sense to completely remove the server from the
rack cabinet for maintenance purposes.
V CAUTION!
● Use the anti-tilt plate to prevent the rack from tipping when installing
the rack. Pulling the server out of the rack without having installed the
anti-tilt plate may cause the rack to tip over.
● Be careful not to pinch fingers or clothes when sliding out the server
or pushing it back. Failure to do so may cause injury.
● For further safety information, please refer to chapter "Important
information" on page 45.
