108 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Basic hardware procedures
4.10.2.4 Mounting the side cover

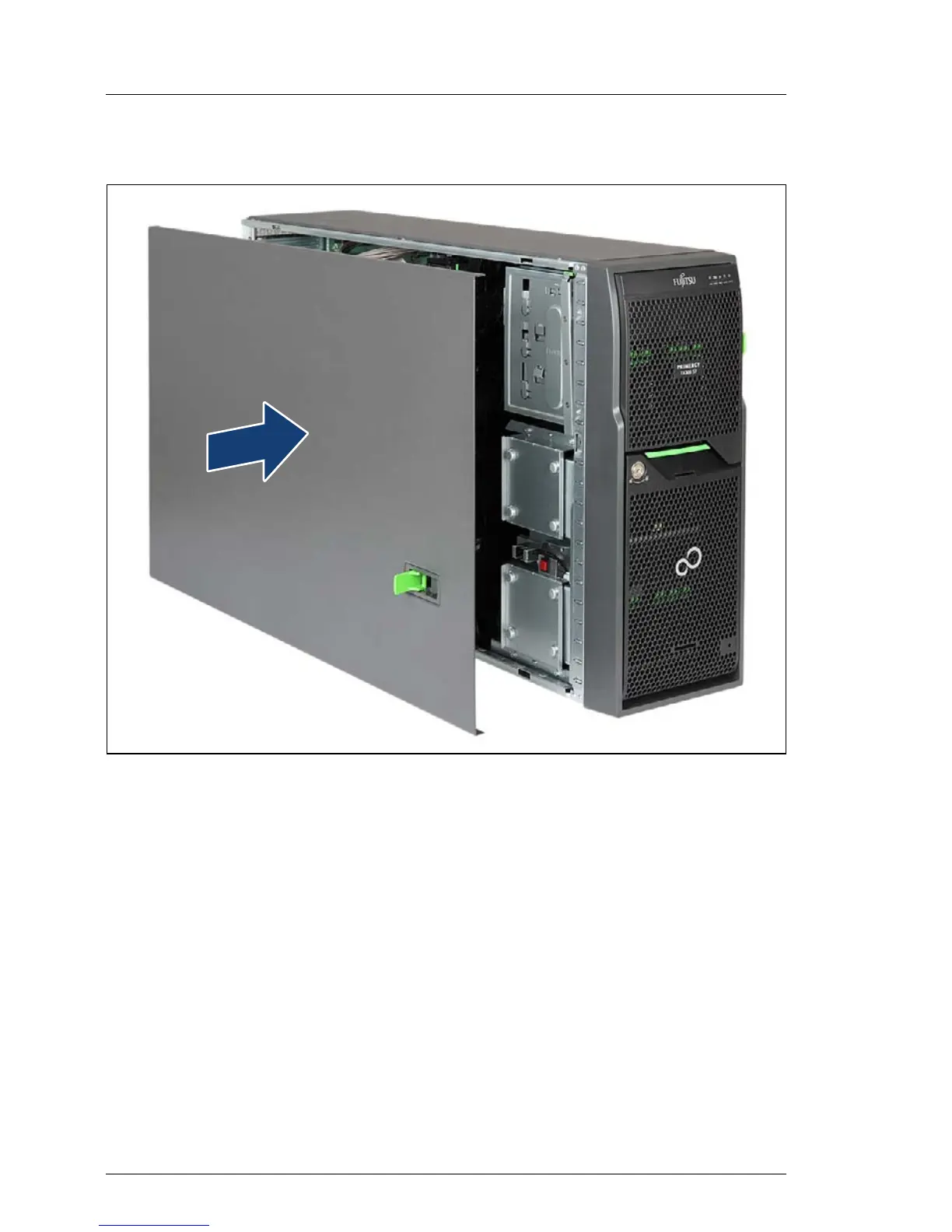

Figure 56: Mounting the side cover (tower server) (A)
Ê Open the locking lever on the side cover.
Ê Fit the side cover on the chassis, recessed by 2 cm.
