164 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Power supply
6.1.1 PSU installation sequence

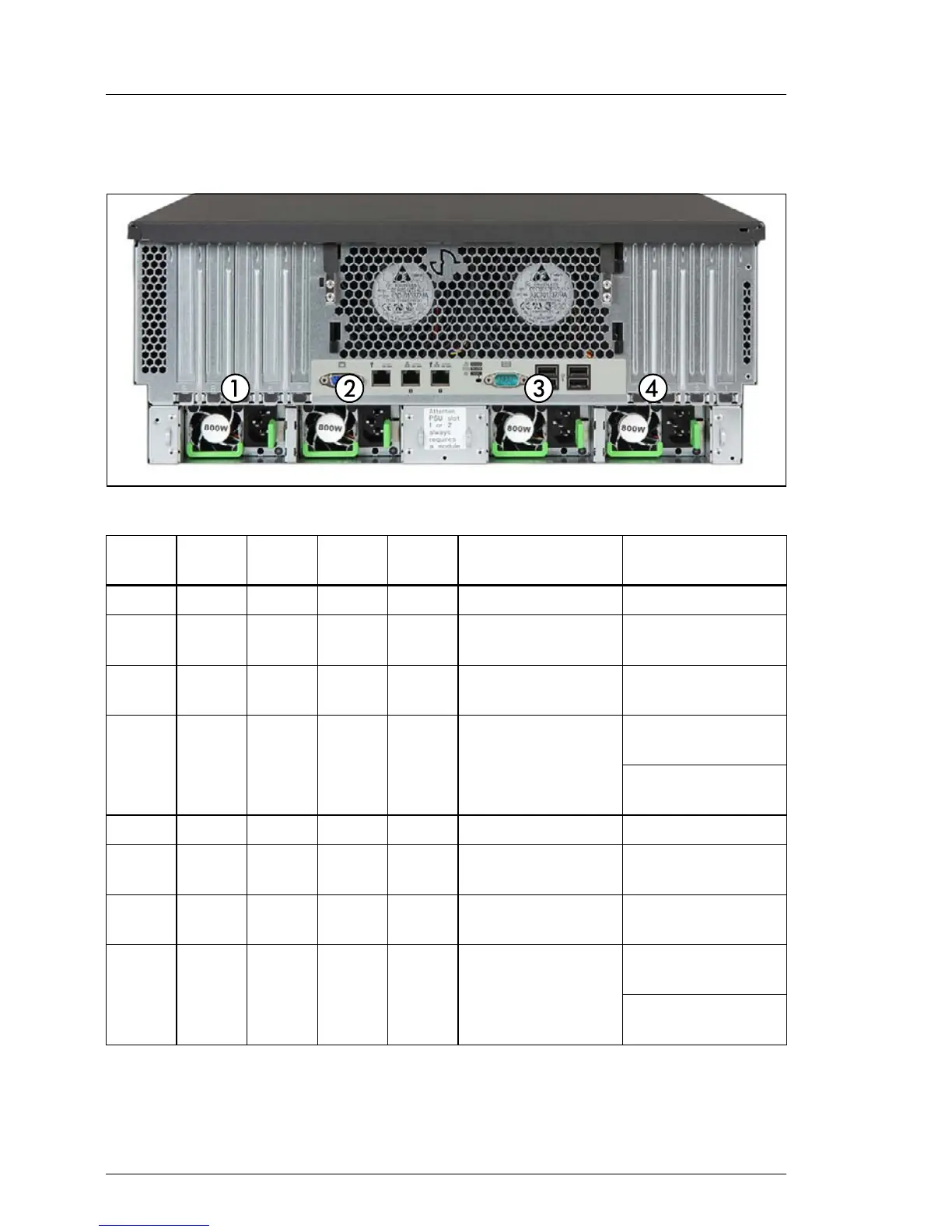

Figure 74: PSU overview
Config. PSU 1 PSU 2 PSU 3 PSU 4
default
configuration
alternative
configurations
1 450 W - - - basic configuration
2 450 W 450 W - -
redundant
1+1 / 450 W
non-redundant
900 W
3 450 W 450 W 450 W -
redundant
2+1 / 900 W
non-redundant
1350 W
4 450 W 450 W 450 W 450 W
redundant
3+1 / 1350 W
redundant
(2+2 / 900 W)
non-redundant
1800 W
5 800 W - - - basic configuration
6 800 W 800 W - -
redundant
1+1 / 800 W
non-redundant
1600 W
7 800 W 800 W 800 W -
redundant
2+1 / 1600 W
non-redundant
2400 W
8 800 W 800 W 800 W 800 W
redundant
3+1 / 2400 W
redundant
2+2 / 1600 W
non-redundant
3200 W
Table 4: PSU configurations
1
1
This specification applies to the number of PSU modules shipped with the server. It may be
necessary to reconfigure the PSU setup if the number of PSUs is altered.
