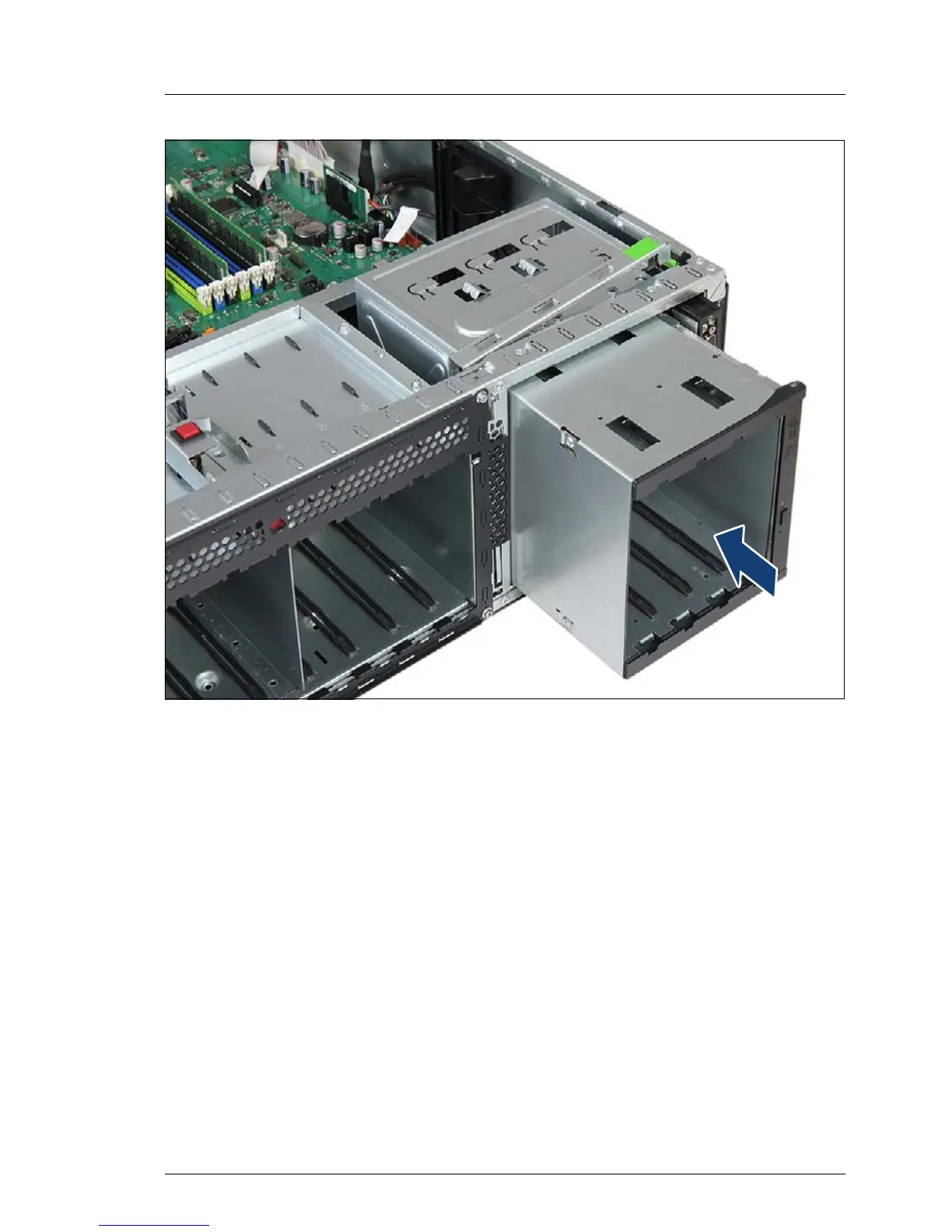

Figure 202: Festplatten-Erweiterungsbox einsetzen
Ê Insert the 4x 3.5-inch HDD extension box into installation bays 1 to 3 and
carefully push in until the front screw hole on the front panel frame lines up
with the centering pin on the locking bar.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
7.4.5.5 Cabling the 4x 3.5-inch HDD extension box
Ê Connect SAS and power cables to the 2x 3.5-inch HDD SAS backplane as
described in section "12x 3.5-inch HDD SAS backplane cabling" on
page 251.
Ê If applicable, connect slimline ODD and LSD module cables as described in
section "Cabling the slimline ODD on the HDD extension box" on page 593.
