436
Upgrade and Maintenanc
e Manual
TX300 S
8 / RX350 S8
Exp
ansion cards and backup un
it
s
9.6.2.2
Prepar
ing the BBU

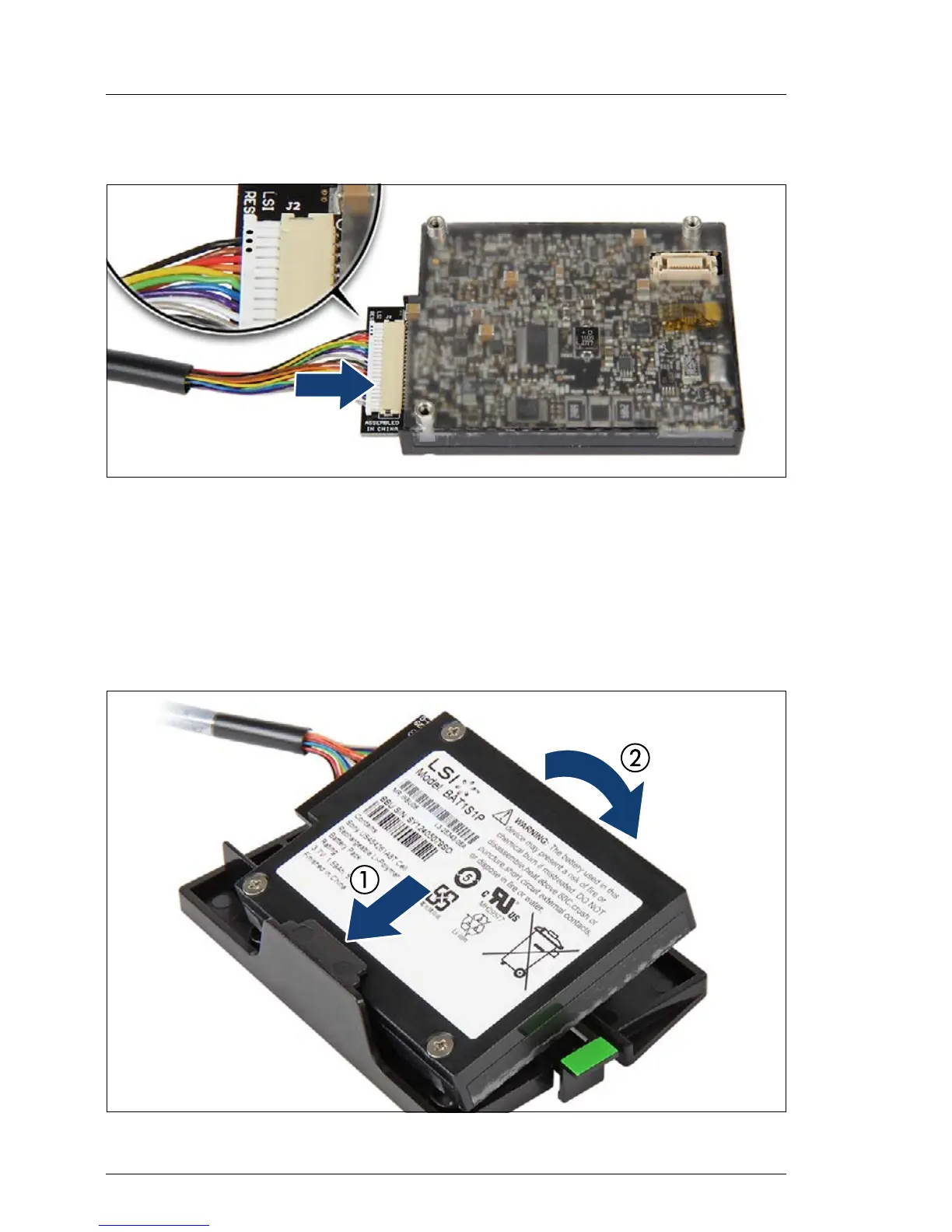

Figure 328: Connecting the BBU
cable
Ê
Connect the BBU cable (T26139-Y3987-V2) to the BBU board
(Lx-25343-xxx, BBU08) as shown.
V
CAUTIO
N!
Make sure that the
c
onnector side with
the three dots
points
towards you
(see close-up). Otherwise, short-circuits may result!
Figure 329:
Inst
alling the BBU
in the BBU holder
435
437
