192 Upgrade and Maintenance Manual TX300 S8 / RX350 S8

Hard disk drives / solid state drives

7.2.4 16x 2.5-inch HDDs (4 SAS backplanes)

7.2.4.1 Mounting order for 2.5-inch SAS 2.0 HDDs / SSDs

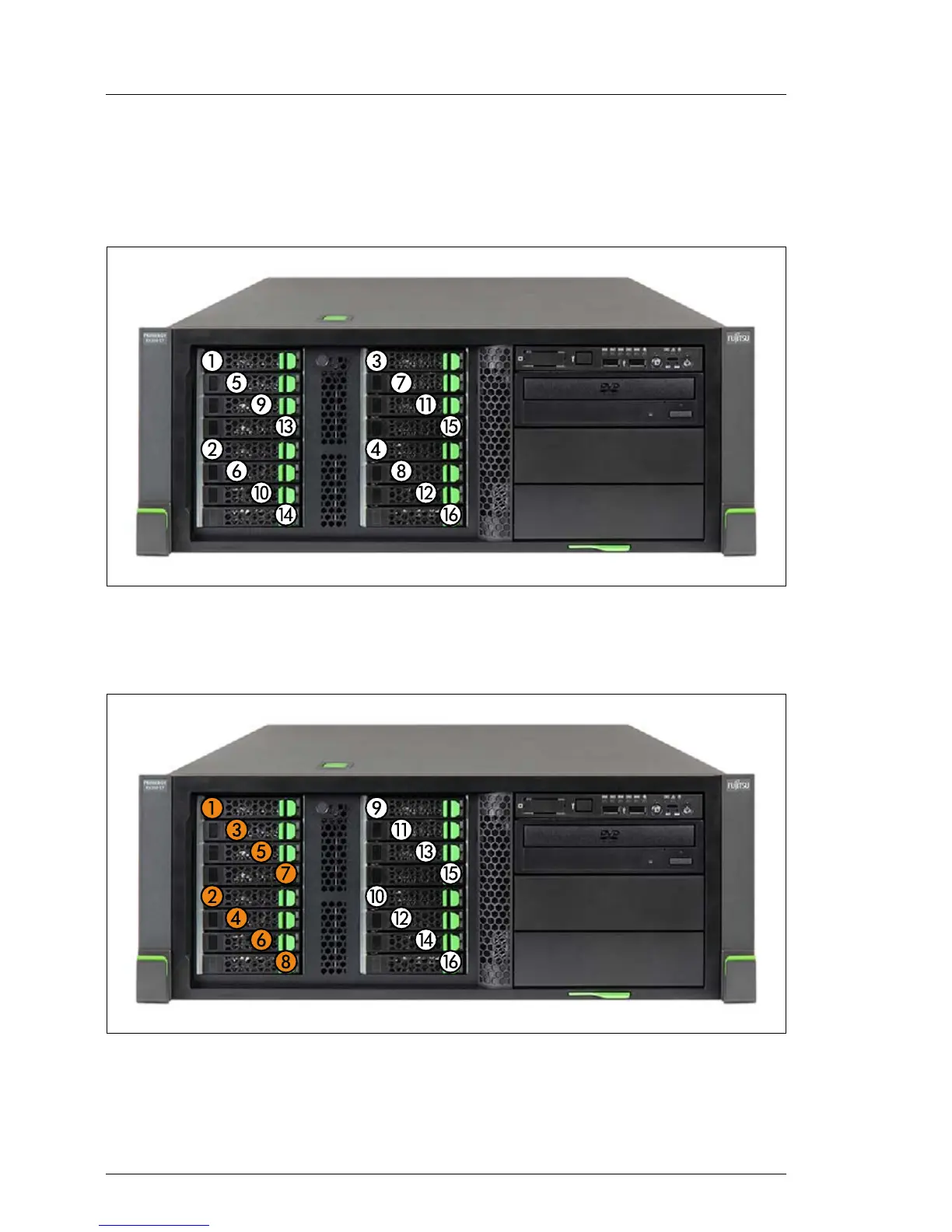

Figure 99: Mounting order: up to 16x 2.5-inch SAS 2.0 HDDs / SSDs

7.2.4.2 Mounting order for 2.5-inch SAS 2.0 / SAS 3.0 HDDs / SSDs

Figure 100: Mounting order: 16x 2.5-inch HDDs / SSDs (8x SAS 3.0 / 8x SAS 2.0)
