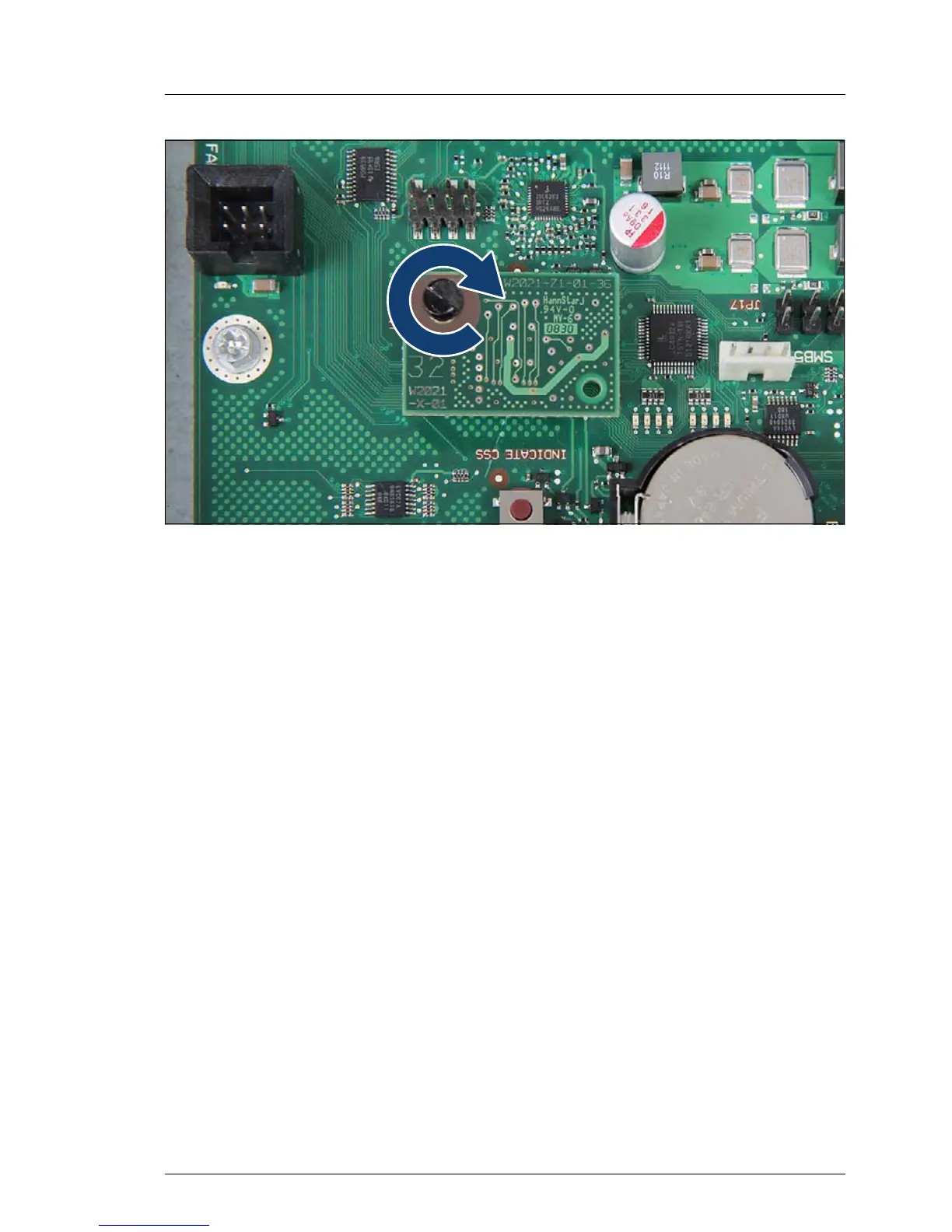

Figure 522: Securing the TPM board
Ê Secure the TPM board with the TPM screw using the TPM bit insert.
I Do not fasten the screw too firmly. Stop as soon as the head of the
screw lightly touches the TPM board.
14.3.1.3 Concluding steps
Ê "Installing the system air duct" on page 83
Ê "Closing the server" on page 98
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê "Connecting the server to the mains" on page 118
Ê Enable TPM in the system board BIOS. Proceed as follows:
Ê Switch on or restart your server.
Ê As soon as the startup screen appears, press the [F2] function key to
enter the BIOS.
Ê Select the Advanced menu.
Ê Select the Trusted Computing submenu.
Ê Set the TPM Support and TPM State settings to Enabled.
