Fujitsu PRIMERGY TX300 S8 - Mounting the Second 3.5-Inch HDD Backplane

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 277
Hard disk drives / solid state drives
7.3.10.4 Mounting the second 3.5-inch HDD backplane

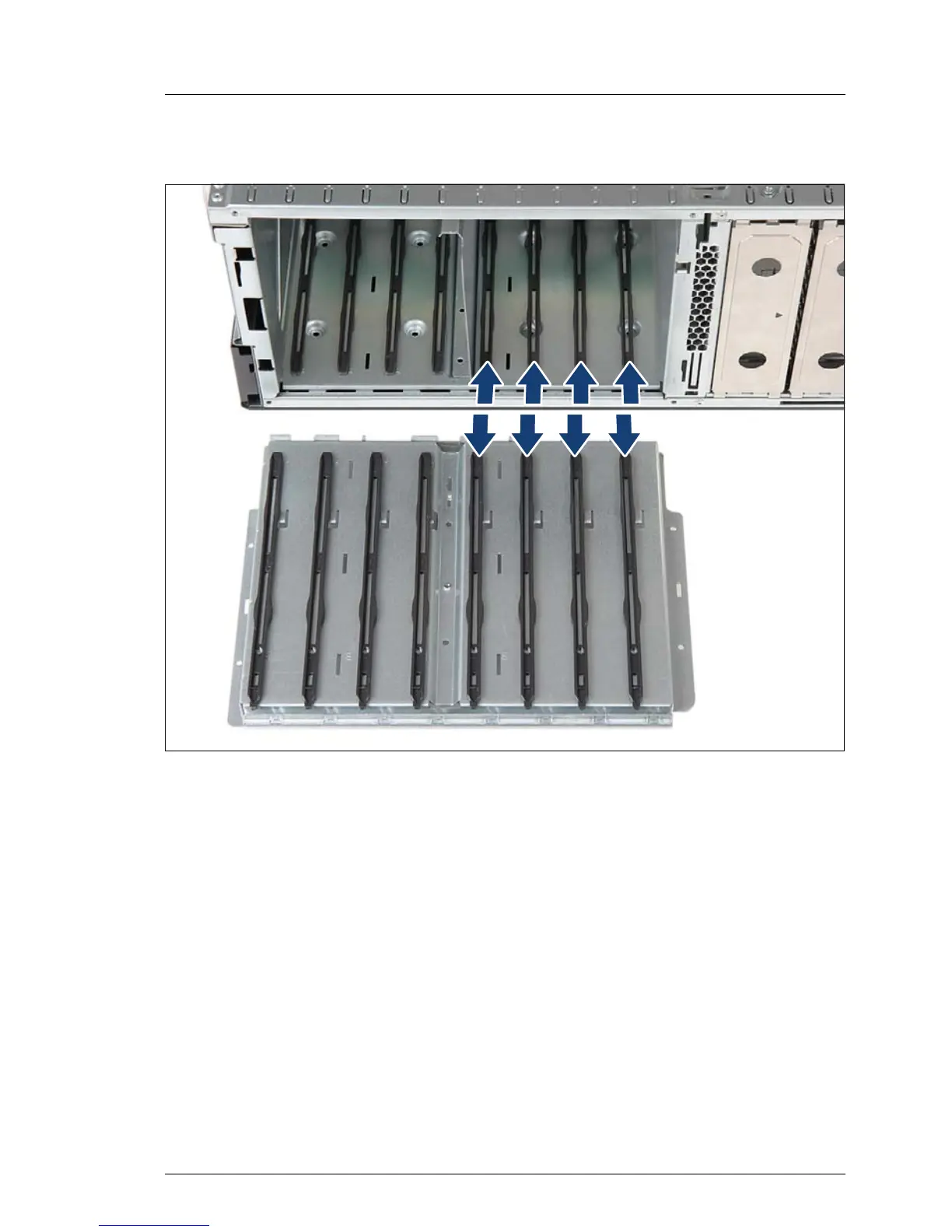

Figure 183: Adding HDD mounting rails
Ê Add eight HDD mounting rails to the HDD bays and HDD bay top cover as
shown (see arrows).
