TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 77
Basic hardware procedures
4.5.2.4 Removing accessible drive and HDD bay covers

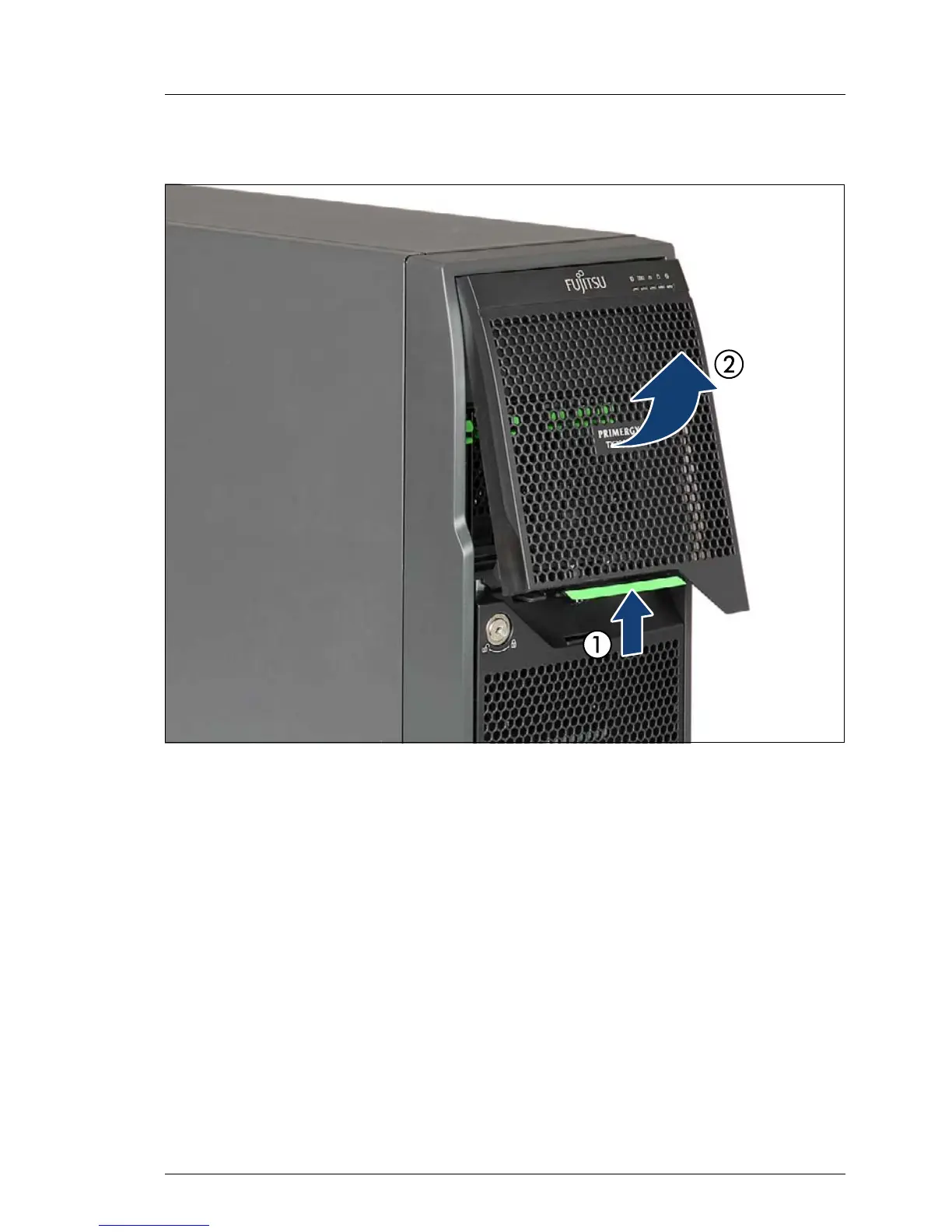

Figure 24: Removing the accessible drive bay cover
Ê Press up on the locking latch (1) and fold out the accessible drive bay cover
(2).
Ê Remove the accessible drive bay cover from the front cover.
