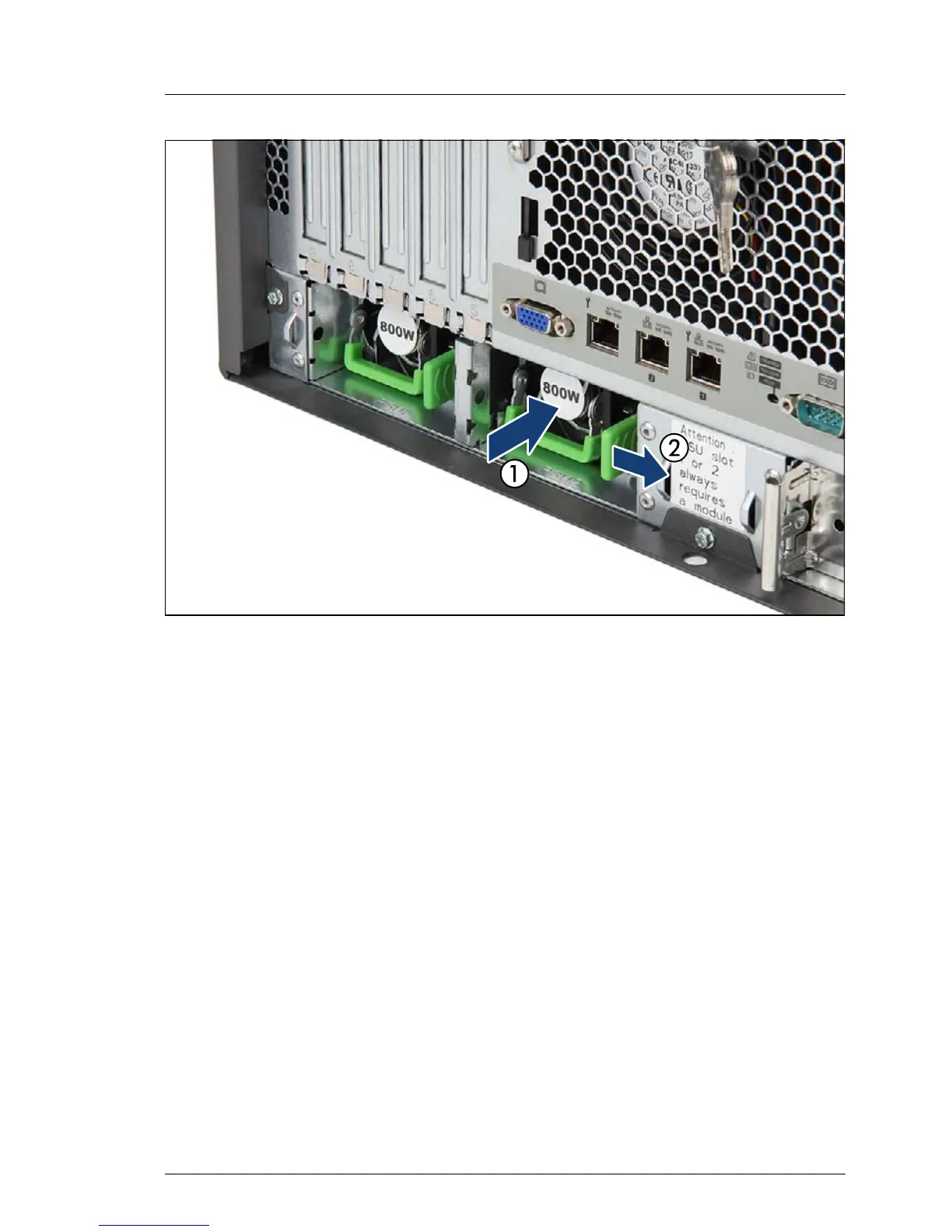

Figure 79: Installing a PSU module
Ê Push the PSU module into its slot (1) as far as it will go until the locking latch
snaps in place (2).
V CAUTION!
Ensure that the PSU module properly engages in its slot and is locked
in position in order to prevent it from sliding out of the chassis during
transportation.
Ê If applicable, fold down the handle on the PSU module.
6.2.3 Concluding steps
Ê Ensure that all PSU modules have been installed as specified in table 4 on
page 164.
Ê "Connecting the server to the mains" on page 118
