342
Upgrade and Mai
ntenance Manual
TX300 S
8 / RX350 S8
Fans
8.3.4.3
Inst
alling th
e rear fan holder

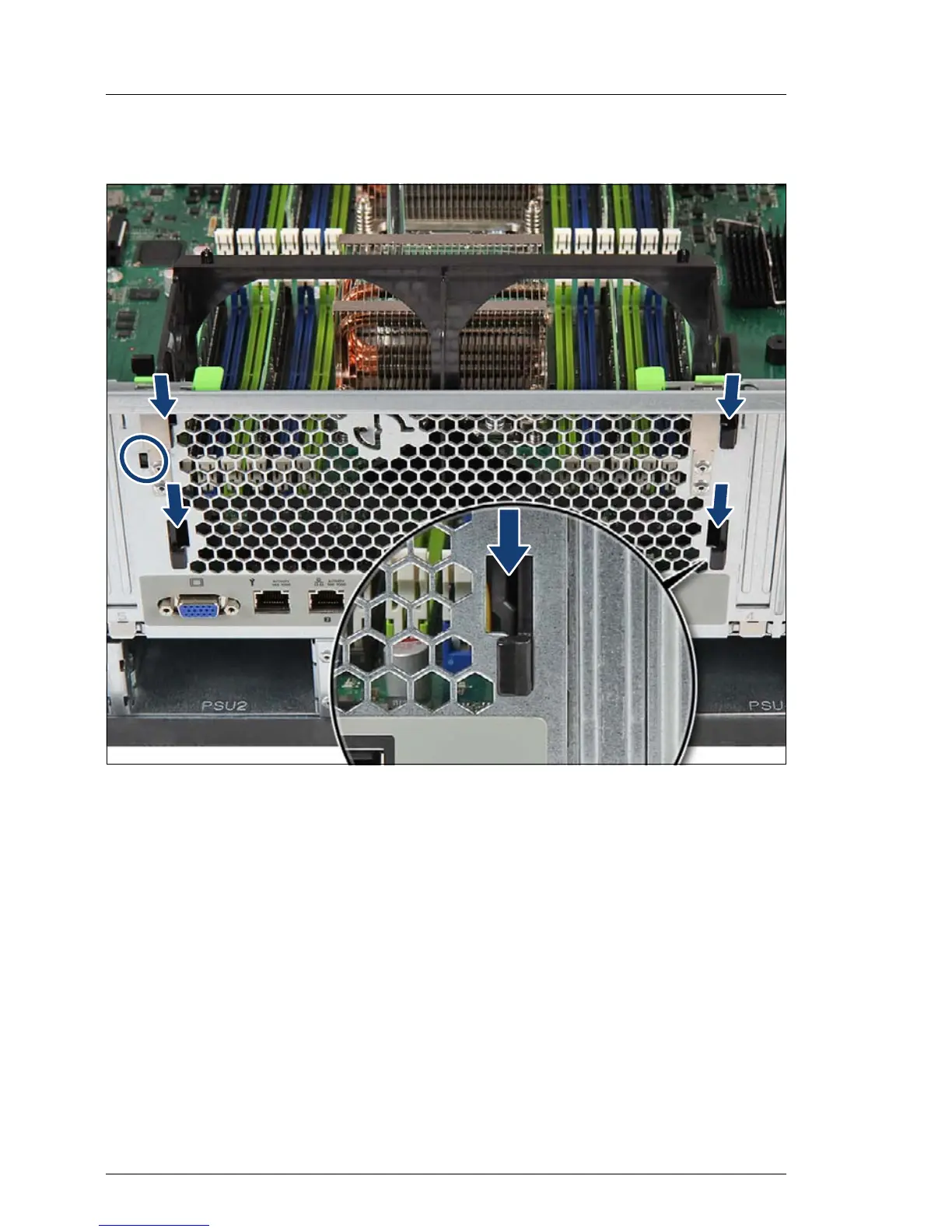

Figure 232: Mounting the rear f
an holder (A)
Ê
Lower the rear
fan holder into the chass
is.
Ê
Fit the four hooks on the rear fan hol
der into the keyhole
slots in the
chassis.
Ê
Press down on the rear fan holder until the four hooks lock in the narrow
ends of the keyhole slot
s (see close-up).
