7.5.2.2 Removing the SAS expander board
Figure 212: Installing accessible drive covers

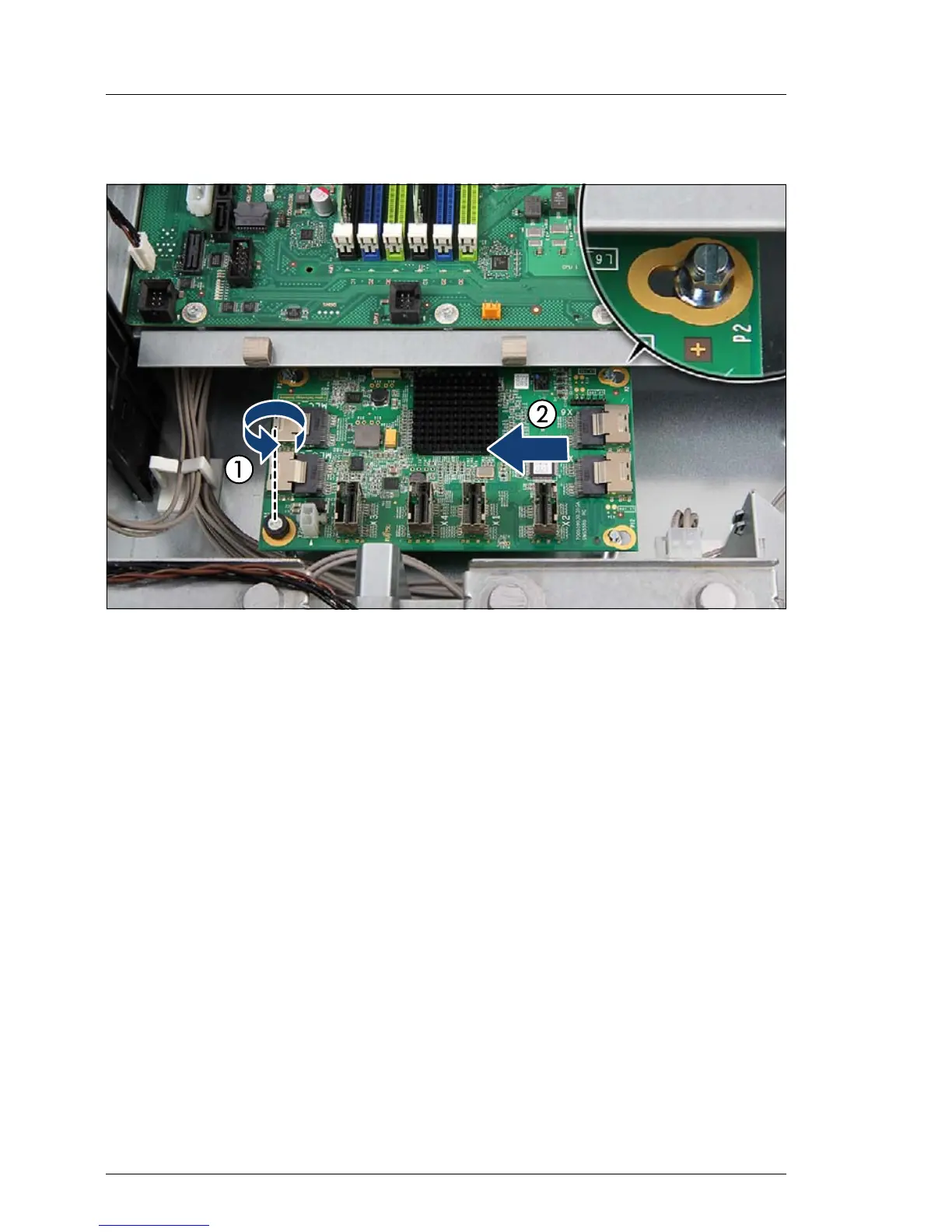

Ê Loosen the captive knurled thumb screw on the SAS expander board (1).
Ê Slide the expander board to the left as far as it will go (2).
The shoulder screw caps on the expander board spacer bolts will rest in the
wide ends of the keyhole slots on the spacer board (see close-up).
