Ê When working on a tower server, open the HDD bay cover as described in
section "Removing accessible drive and HDD bay covers" on page 77.
7.3.7.2 Removing a 3.5-inch HDD module

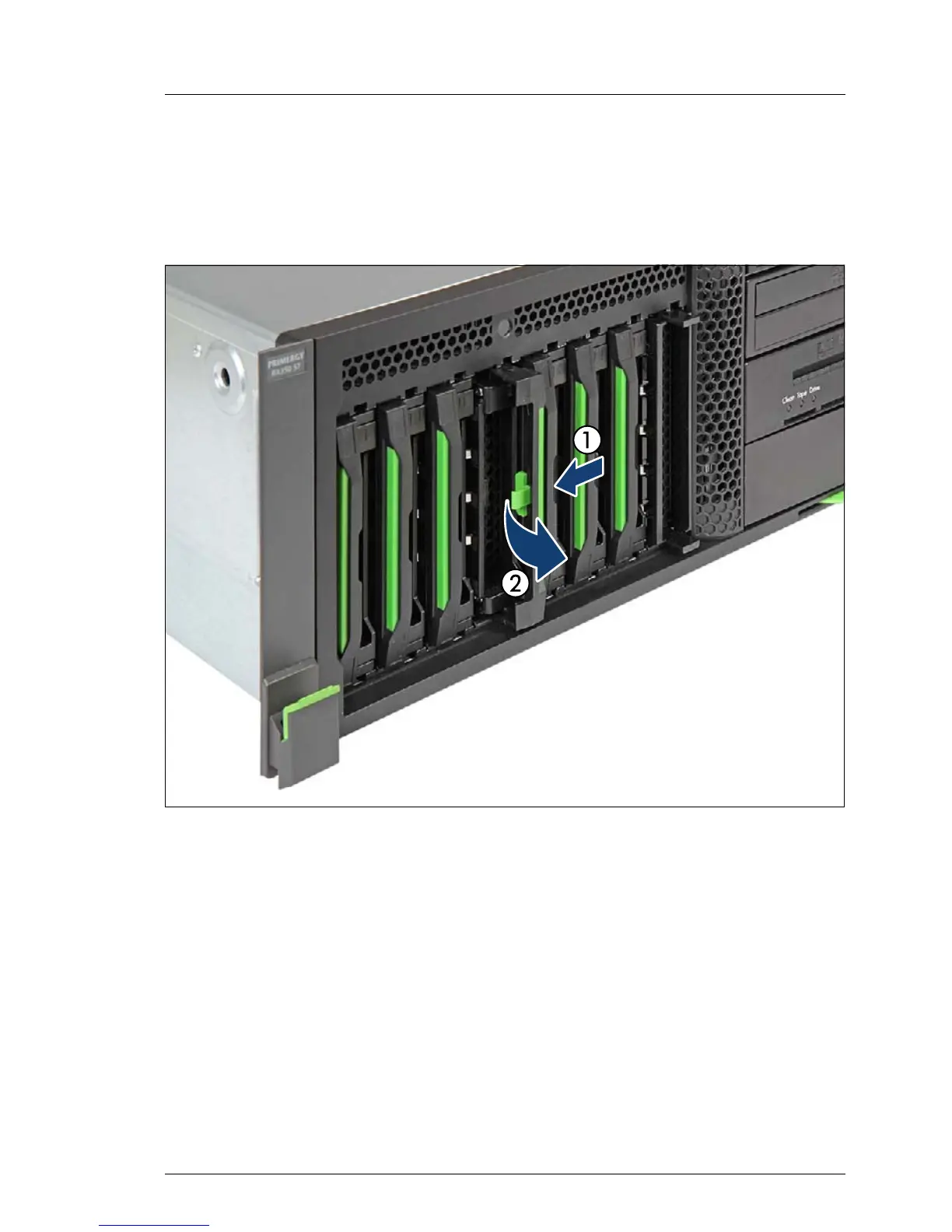

Figure 165: Disconnecting a 3.5-inch HDD module
Ê While pressing down on the locking button (1) fold up the lever (2).
I Thereby, the HDD module is pushed out of its drive bay by about 1 cm
and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
