276
Upgrade and Mai
ntenance Manual
TX300 S
8 / RX350 S8
Hard disk drives / solid st
ate drives
7.3.10.3
Removing the 4x 3.5-inch
HDD front p
anel

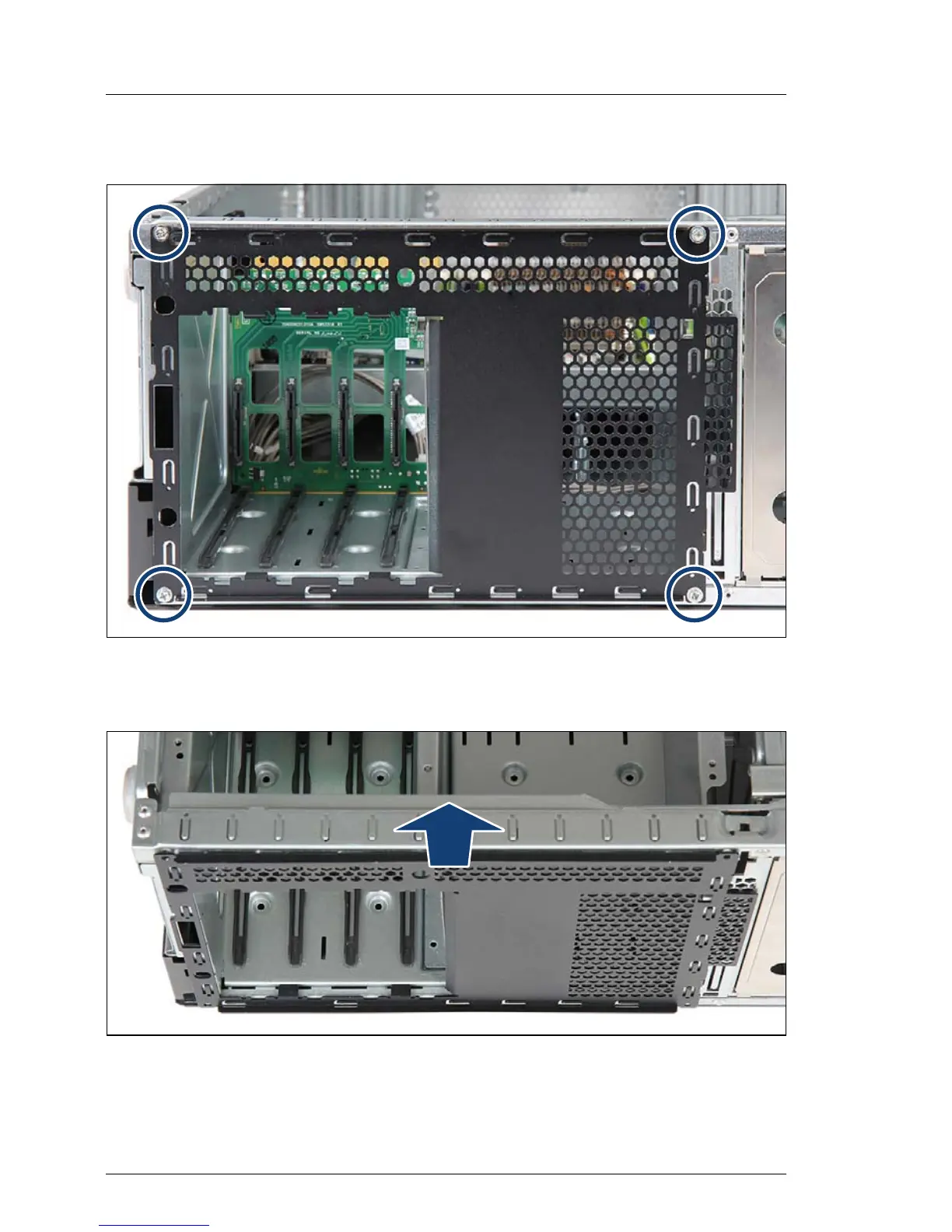

Figure 181: Removing the 4x 3.
5-inch HDD front panel
(A)
Ê
Remove four screws
from the 4x 3.5-inc
h HDD front panel.
Figure 182: Removing the 4x 3.
5-inch HDD front panel
(B)
Ê
Pull up on the 4x 3.5-inch HDD front p
anel to disengage it from the chassis.
Ê
Remove the 4x 3.5-inch HDD front panel.
275
277
