I Dummy modules have been installed into unused HDD / SSD bays.
Before installing an additional HDD / SSD, the dummy module needs to
be removed from the desired drive bay.
Ê Press in on the locking clips on left side of the dummy module to disengage
the locking mechanism (1).
Ê While keeping the locking clip pressed, pull the dummy module out of its bay
(2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD / SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
7.2.6.3 Installing a 2.5-inch HDD / SSD module

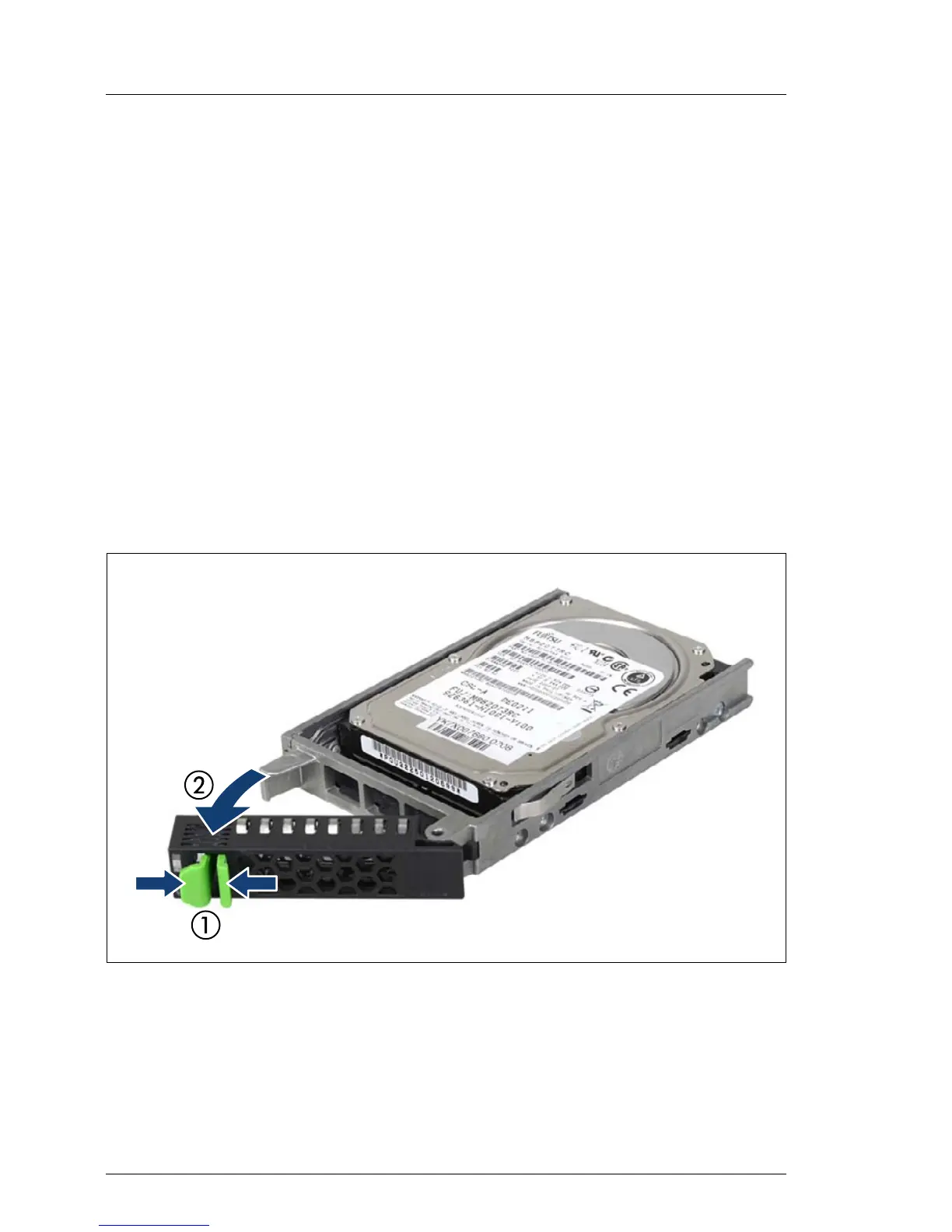

Figure 109: Opening the 2.5-inch HDD / SSD module locking lever
Ê Pinch the green locking clips (1) and open the locking lever (2).
