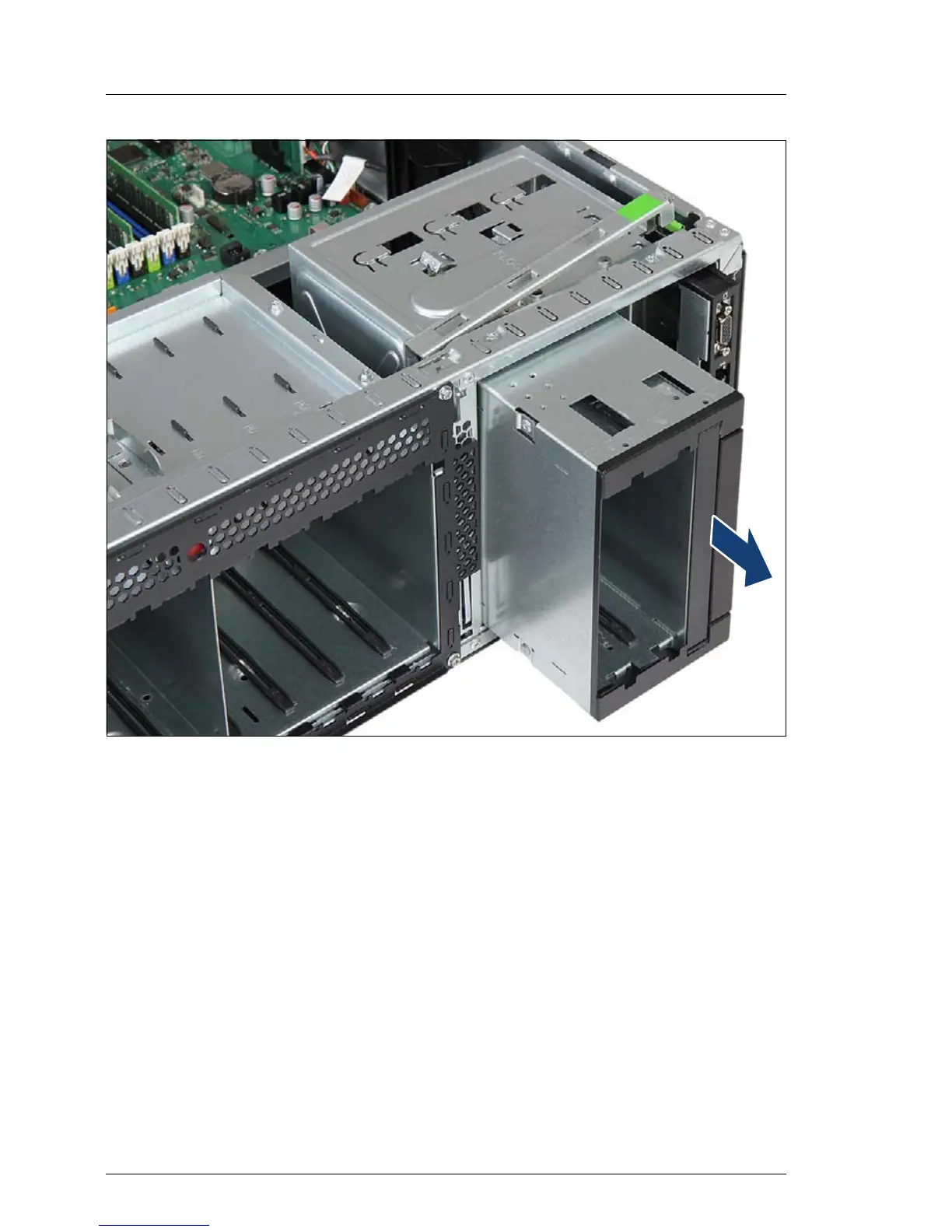

Figure 200: Removing the HDD extension box
Ê Carefully pull the 2x 3.5-inch HDD extension box out of its installation bays.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
7.4.3.3 Installing accessible drive dummy covers
Ê Install accessible drive filler covers into empty drive bays as described in
section "Accessible drive filler covers" on page 94.
Ê Install accessible drive covers into the front cover as described in section
"Accessible drive covers" on page 96.
