14.6.3.3 Connecting cables to the system board

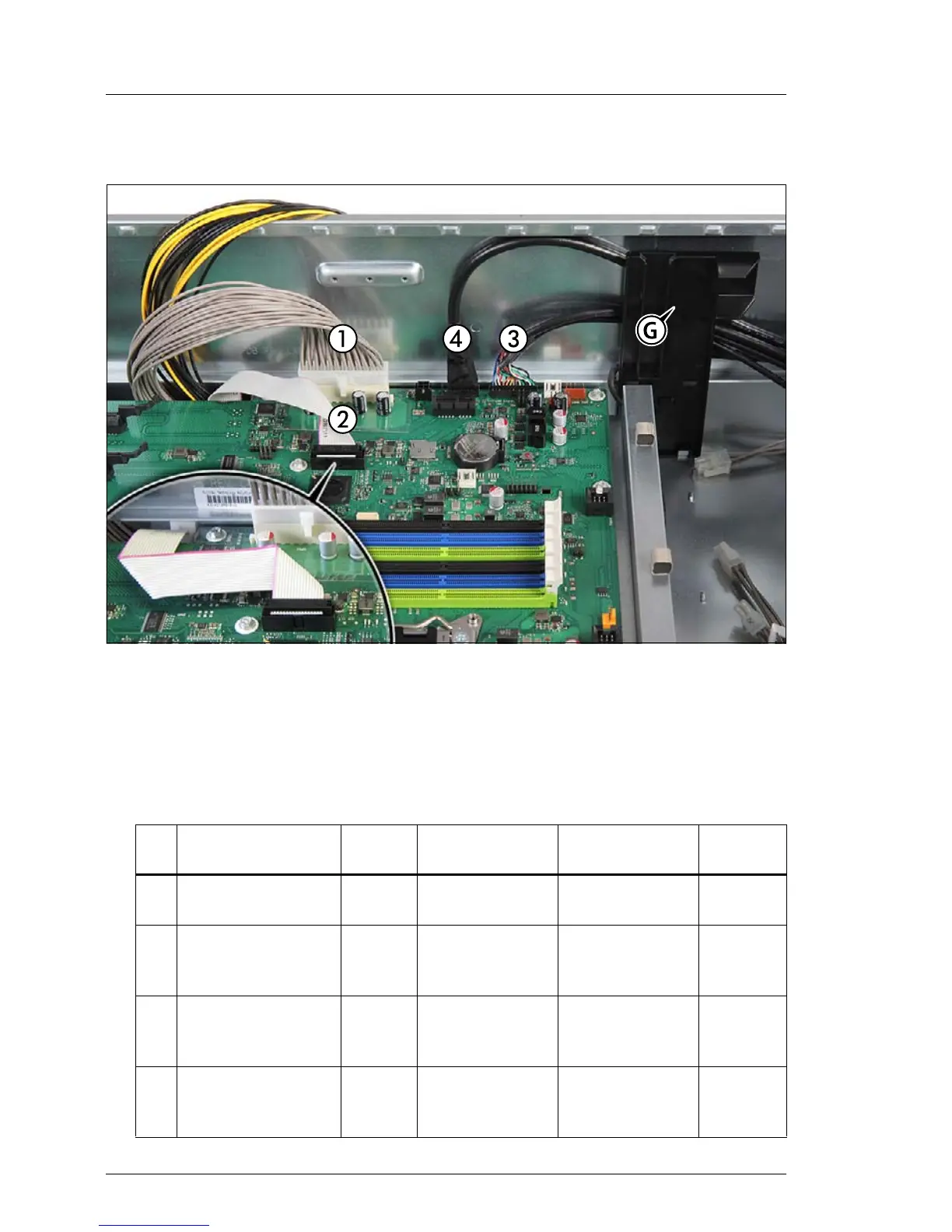

Figure 550: Connecting cables to the system board (A)
Ê Run the cables through the cable guide (G) as shown.
Ê Fold the PSU signal cable (T26139-Y4027-V1) as shown. Ensure that it lays
flat against the system board (see close-up).
Ê Connect the power and front panel cables to the system board:
No.
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
1
System power cable
Y3758-V9
4
Power backplane
connector X20
System board
connector PWR
16.2.2
2
PSU signal cable
Y4027-V1
2
Power backplane
connector X25
System board
connector PSU
CONTROL
16.2.2
3
Front panel cable
Y4015-V1
10
Front panel
module
System board
connector
FRONTPANEL
16.2.1
4
Front VGA cable
Y3994-V101
12
Front panel
module
System board
connector
FRONT VGA
16.2.1
