13.1.3 Replacing the front panel module cover
I Removing and mounting the front panel module cover is required if
installing or removing optional front LAN or front VGA connectors.
13.1.3.1 Removing the front panel module cover

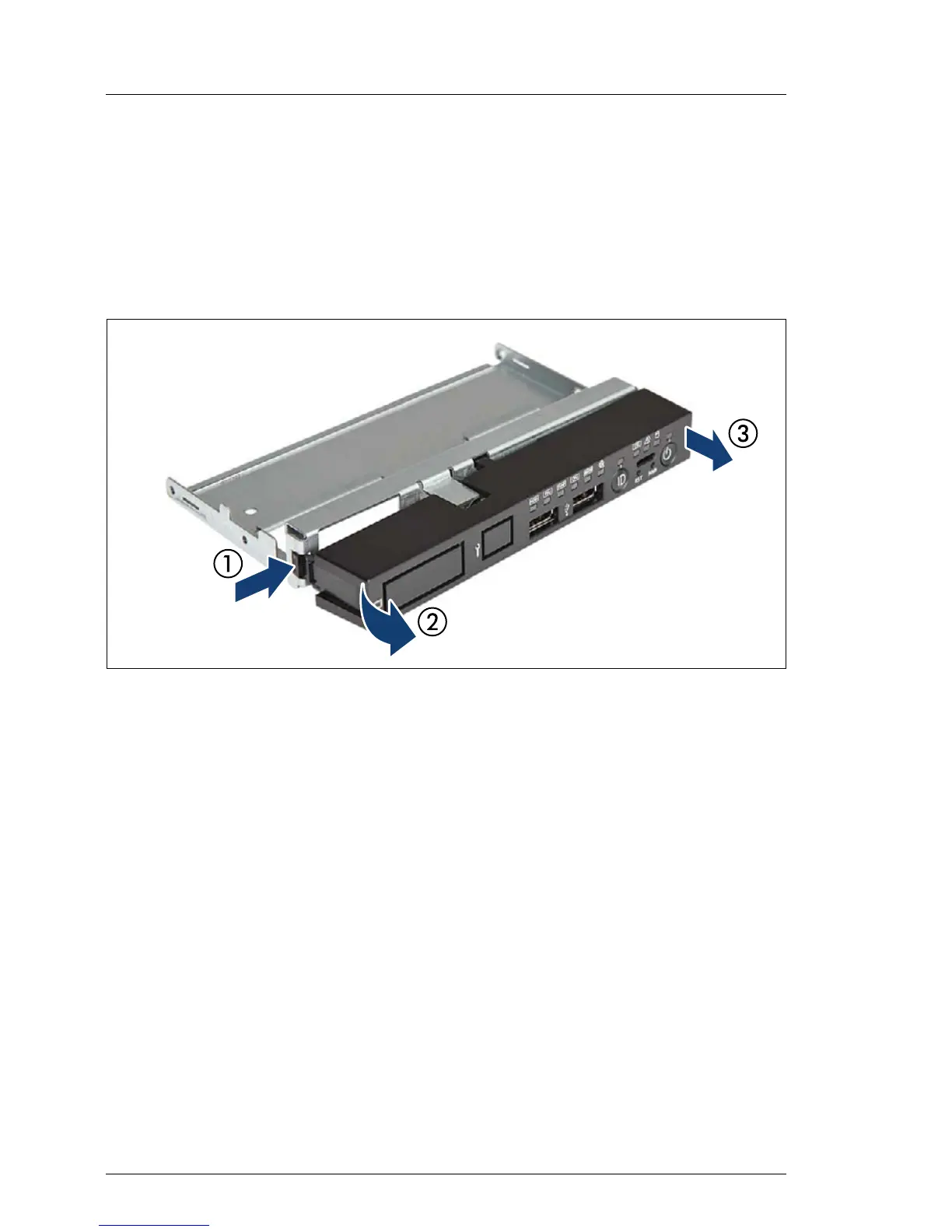

Figure 473: Removing the front panel module cover (A)
Ê Press in on the locking latch on the left side of the front panel module cover
to disengage the locking mechanism (1).
Ê Fold out the left side of the front panel module cover as shown (2).
Ê Disengage the right locking latch and pull off the front panel module cover
(3).
