TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 607
Front panel and external connectors
13.1.2.3 Removing cables from the front panel module

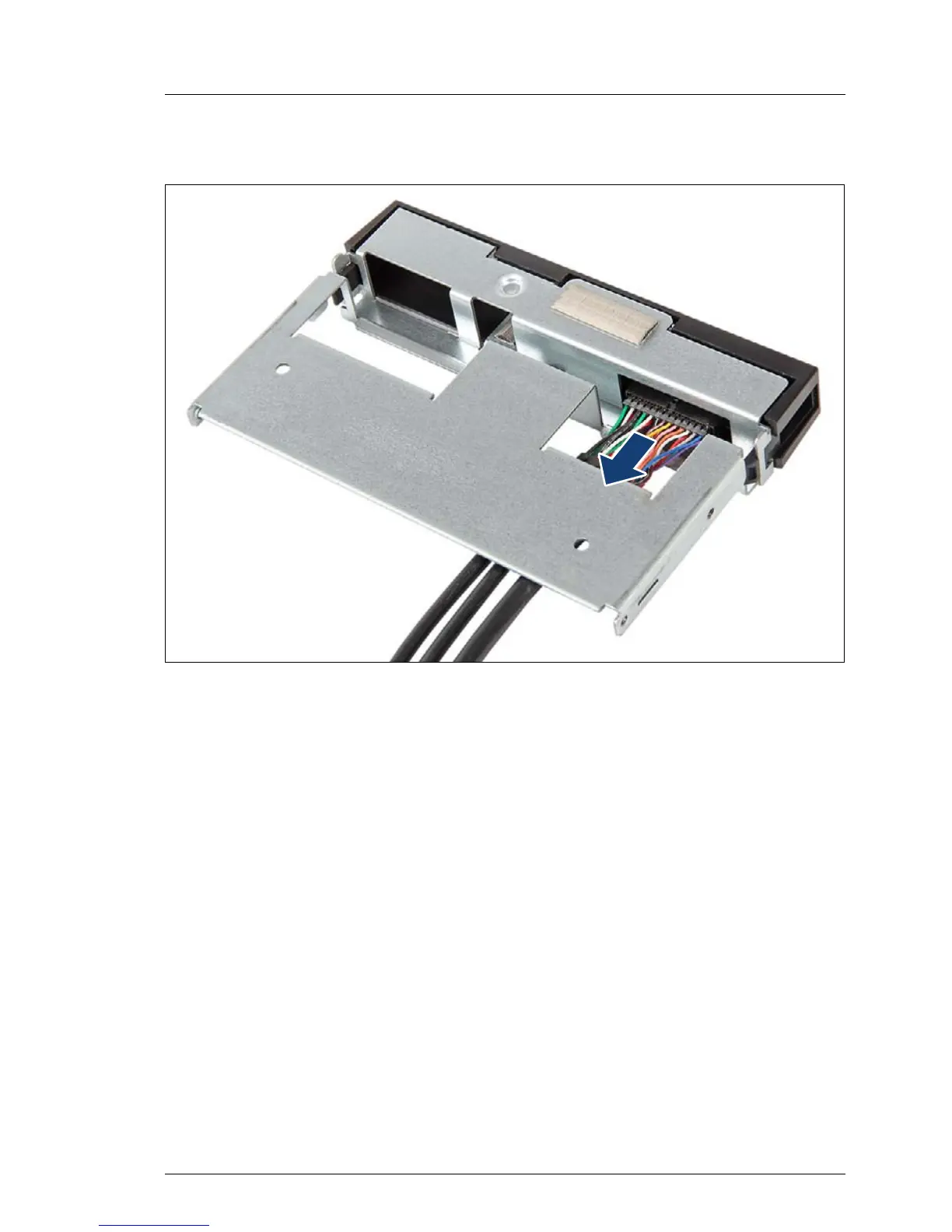

Figure 472: Removing the front panel cable
Ê Remove the front panel cable from the defective front panel module as
shown.
Ê If the front LAN connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front LAN
connector" on page 628.
Ê If the front VGA connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front VGA
connector" on page 639.

Fujitsu PRIMERGY TX300 S8 Specifications

General

Form Factor	Tower
Number of Processors Supported	2
Chipset	Intel C602
Memory Type	DDR3
Maximum Memory	384 GB
Storage	Up to 16 TB
Operating System Support	Yes
Memory Slots	24
Drive Bays	8 x 3.5-inch
RAID Controller	Optional
RAID Support	RAID 0, 1, 5, 10
Network Interface	2 x 1 GbE
Network	10/100/1000 Mbps
Power Supply	Optional redundant power supply
Operating System	Windows Server, Linux
Operating Systems Supported	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
