TX300 S8 / RX350 S8
Upgrade and Maintenance Manual
171
Power su
pply
6.3.2
Removing a
PSU module

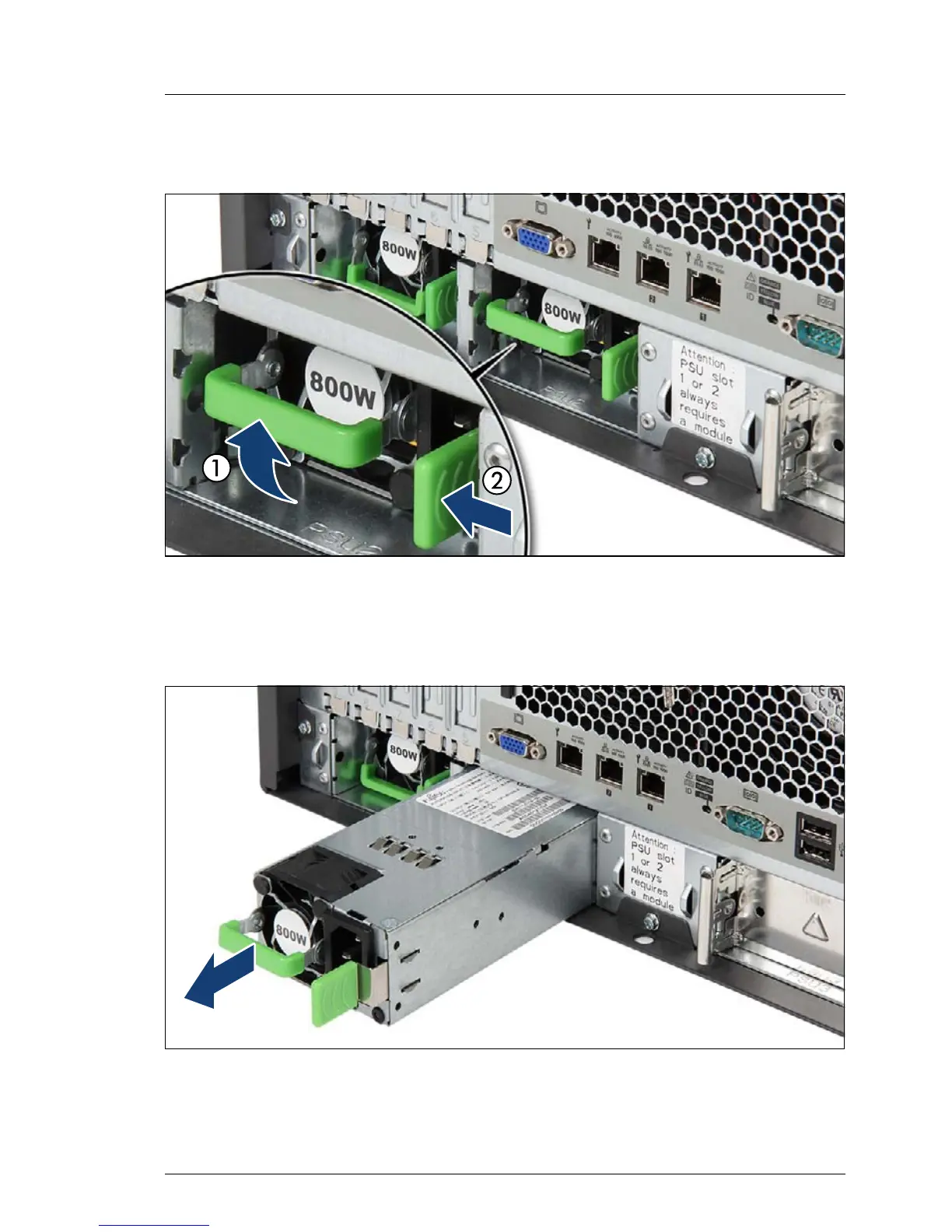

Figure 80: Removing
a PSU
module (A)
Ê
Fold up the handle on the PSU module (1).
Ê
Press in on the green locking latch (2).
Figure 81: Removing
a PSU
module (B)
Ê
While keeping the green locking la
tch pressed, pull the PSU module out of
it
s slot.
170
172
