7.3.9.5 Mounting the 3.5-inch HDD bay top cover

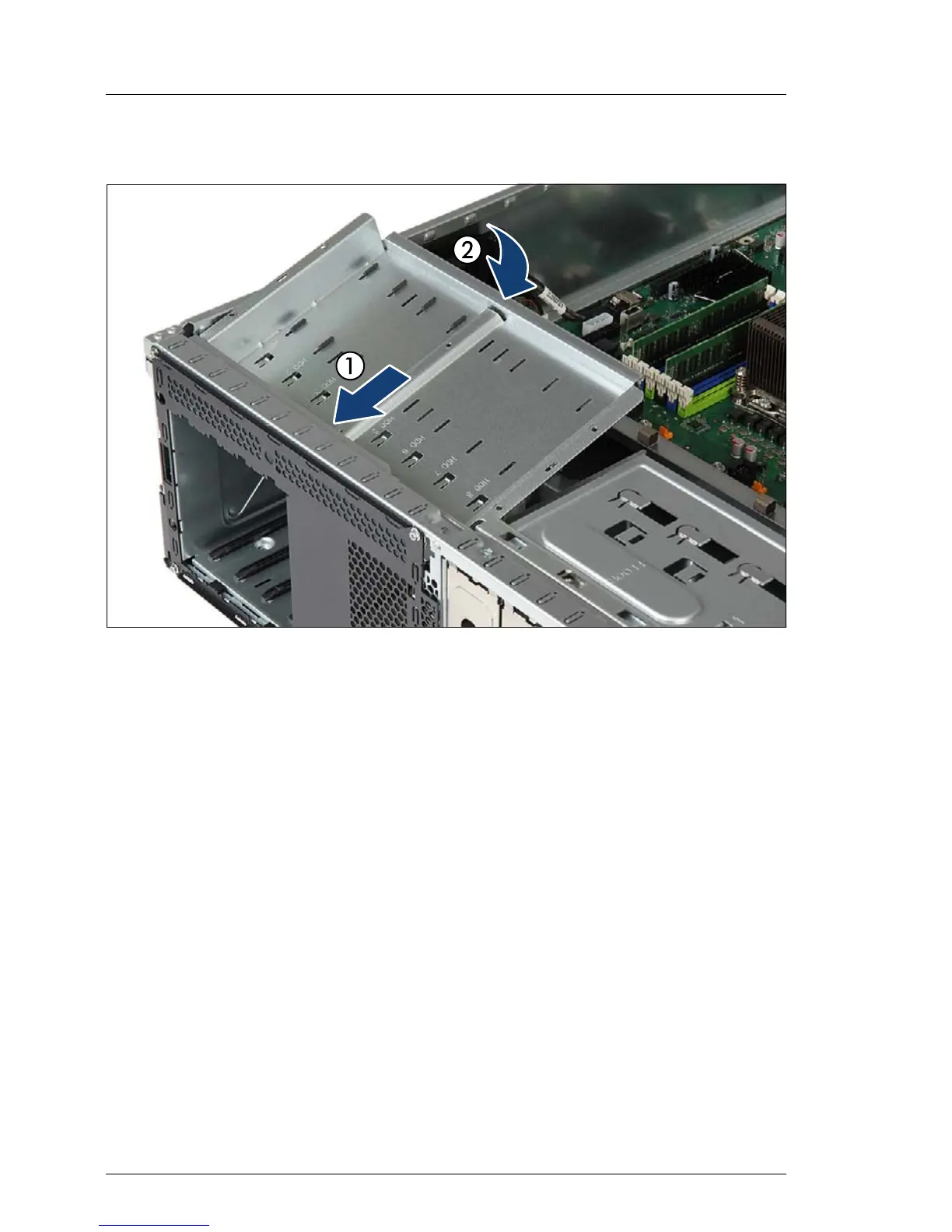

Figure 175: Mounting the 3.5-inch HDD bay top cover (A)
Ê At a slight angle, fit the HDD bay top cover under the front chassis rim (1).
Ê Fold down the HDD bay top cover (2) until it is properly seated on the HDD
bays.
V CAUTION!
Ensure that the 4x 3.5-inch HDD backplanes are properly secured in
the upper rim of the HDD bay to cover.
