758 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling
16.2.22 Cabling of high performance GPGPU /
coprocessor cards

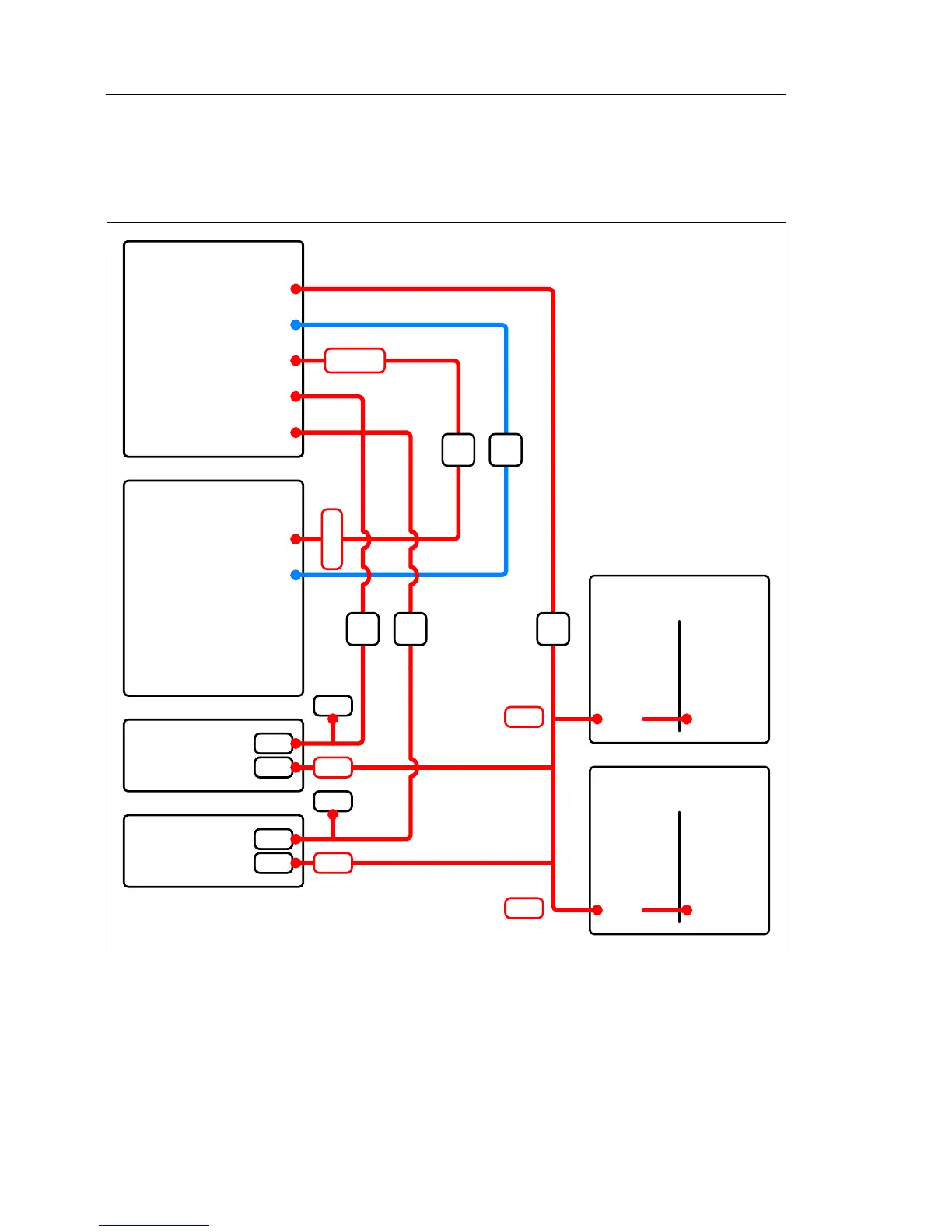

Figure 598: High Performance GPGPU / coprocessor card cabling
HDD Backplane 1
4x
3.5-inch
4x
2.5-inch
X9
X7
X9
X6
HDD Backplane 2
4x
3.5-inch
4x
2.5-inch
X9
X7
X9
X6
6-pin
8-pin
6-pin
8-pin
System Board D2949
PSU CONTROL
PWR
GPGPU
Card 1
PWR HDD / ODD
GPGPU
Card 2
Power Backplane
X25
X21
X20
X22
26
P4
P3
X23
P1
P2
PWR 1
PWRPB
25 25
2
4
6-pin
6-pin
