92 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Basic hardware procedures
4.9.1.2 Rack servers

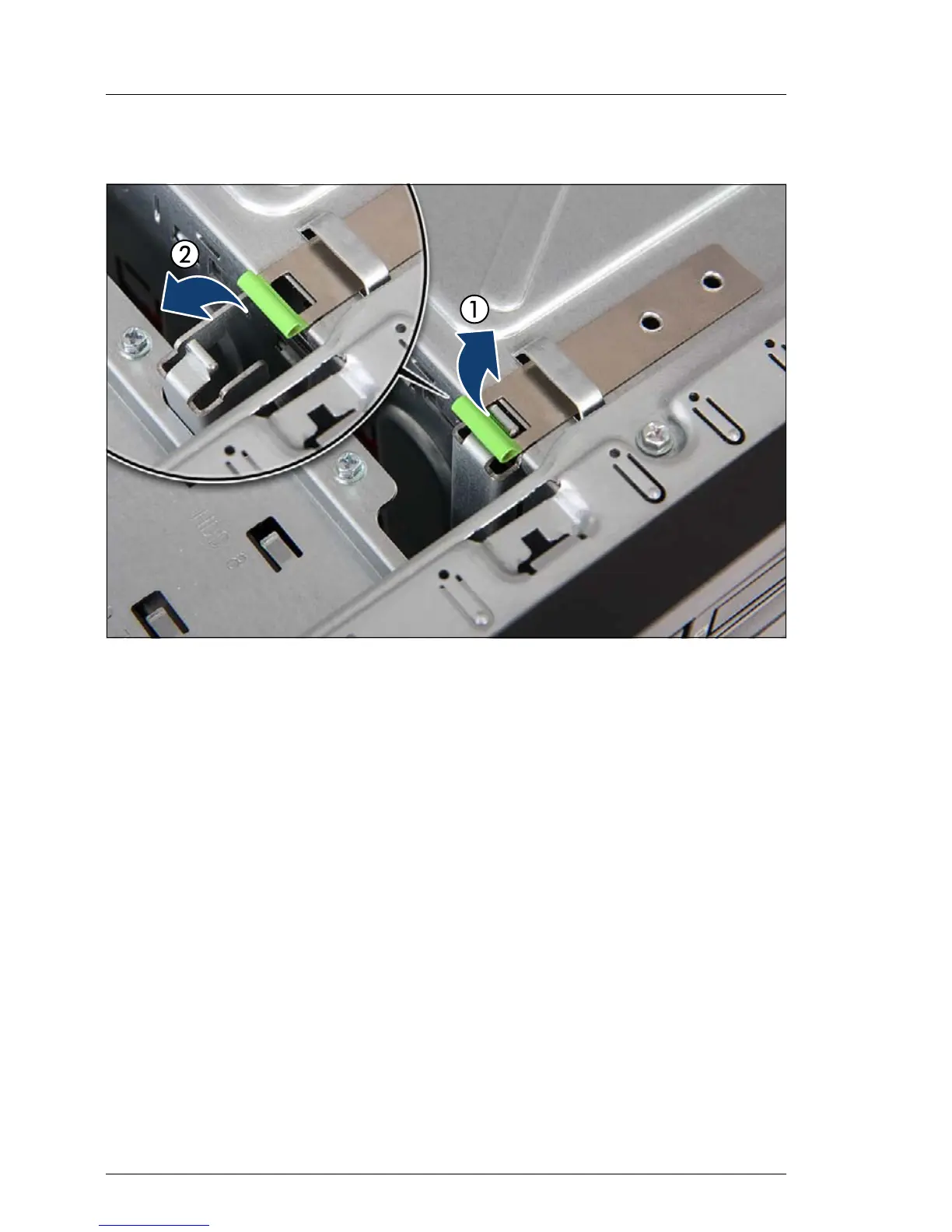

Figure 39: Opening the accessible drive locking bar (rack systems)
Ê Pull up on the locking latch to disengage the accessible drive locking bar (1).
Ê Fold out the accessible drive locking bar (2).
