80 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Basic hardware procedures
4.5.2.5 Removing the front cover

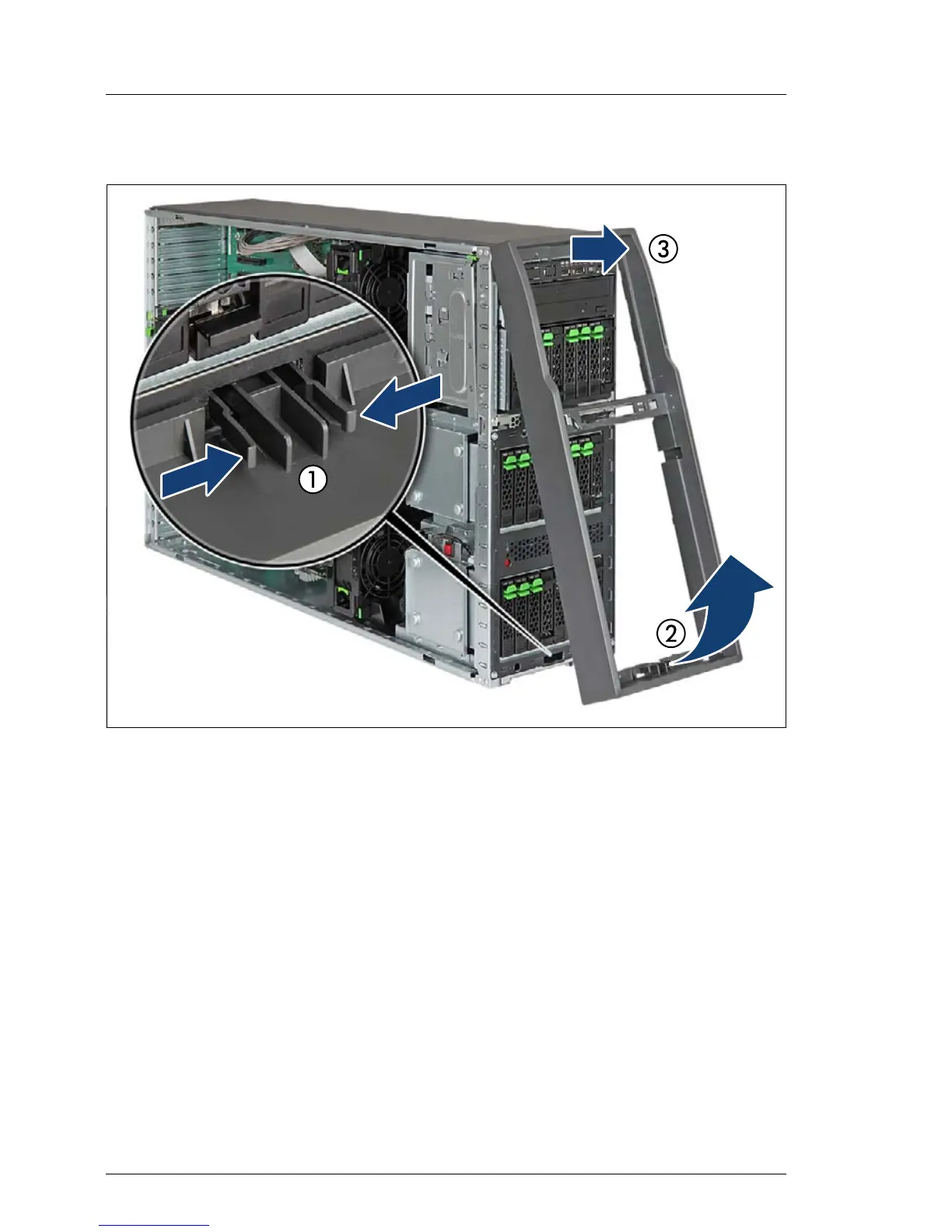

Figure 27: Removing the front cover (tower server)
Ê Pinch the locking clips to disengage the front cover (1, see close-up) while
slightly pulling out.
Ê Carefully fold out the bottom end of the front cover (2).
Ê Unhook and remove the front cover (3).
