TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 79
Basic hardware procedures
Storing the accessible drive bay cover

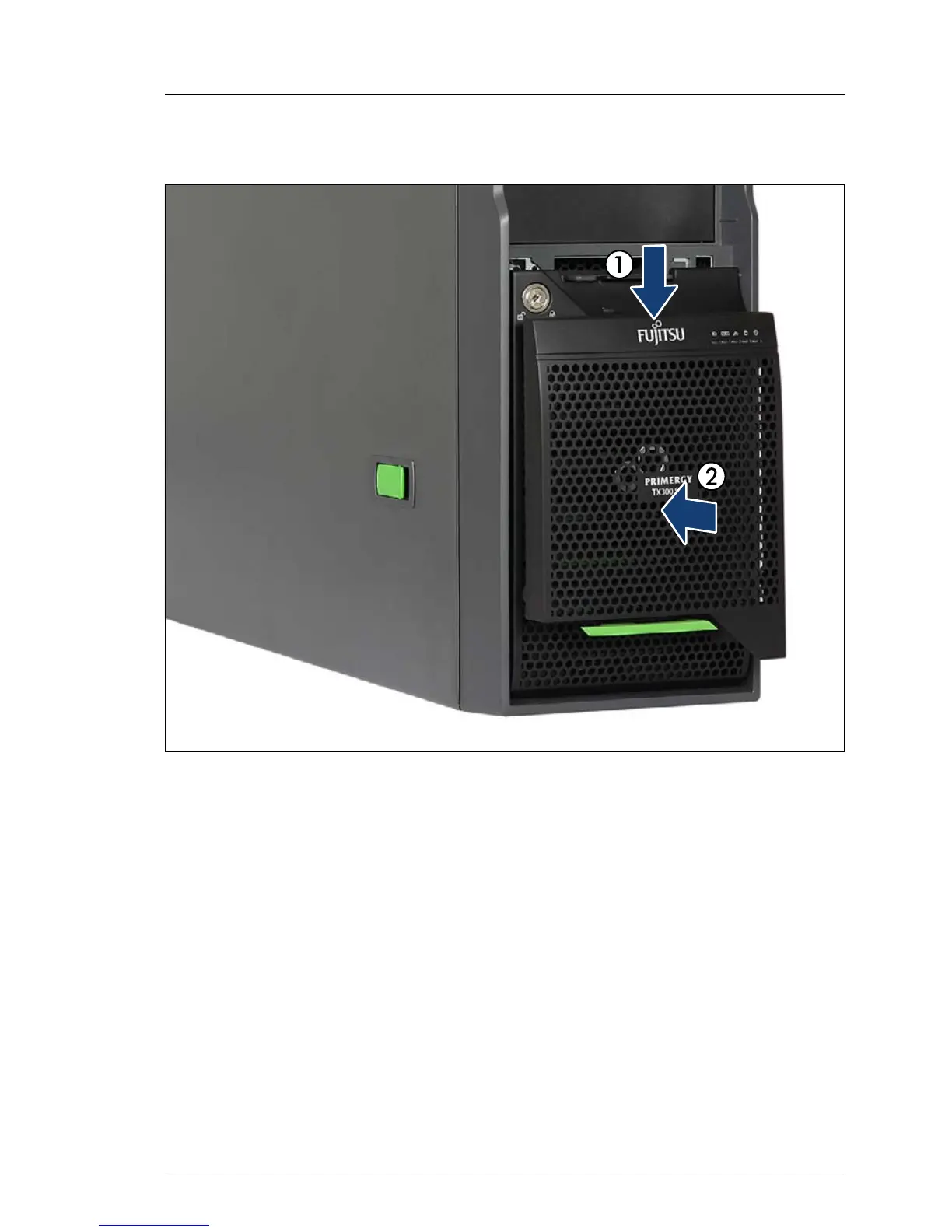

Figure 26: Storing the accessible drive bay cover
Ê Place the accessible drive bay cover on the HDD bay cover as shown (1).
Ê Press in on the bottom edge of the accessible drive bay cover until it snaps
in place (2).
Ê To remove the accessible drive bay cover from its resting position, carefully
pull out on the bottom edge of the cover and lift it off.
