776 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Appendix
17.3 Connectors and indicators
17.3.1 Connectors and indicators on the system board
17.3.1.1 Onboard connectors

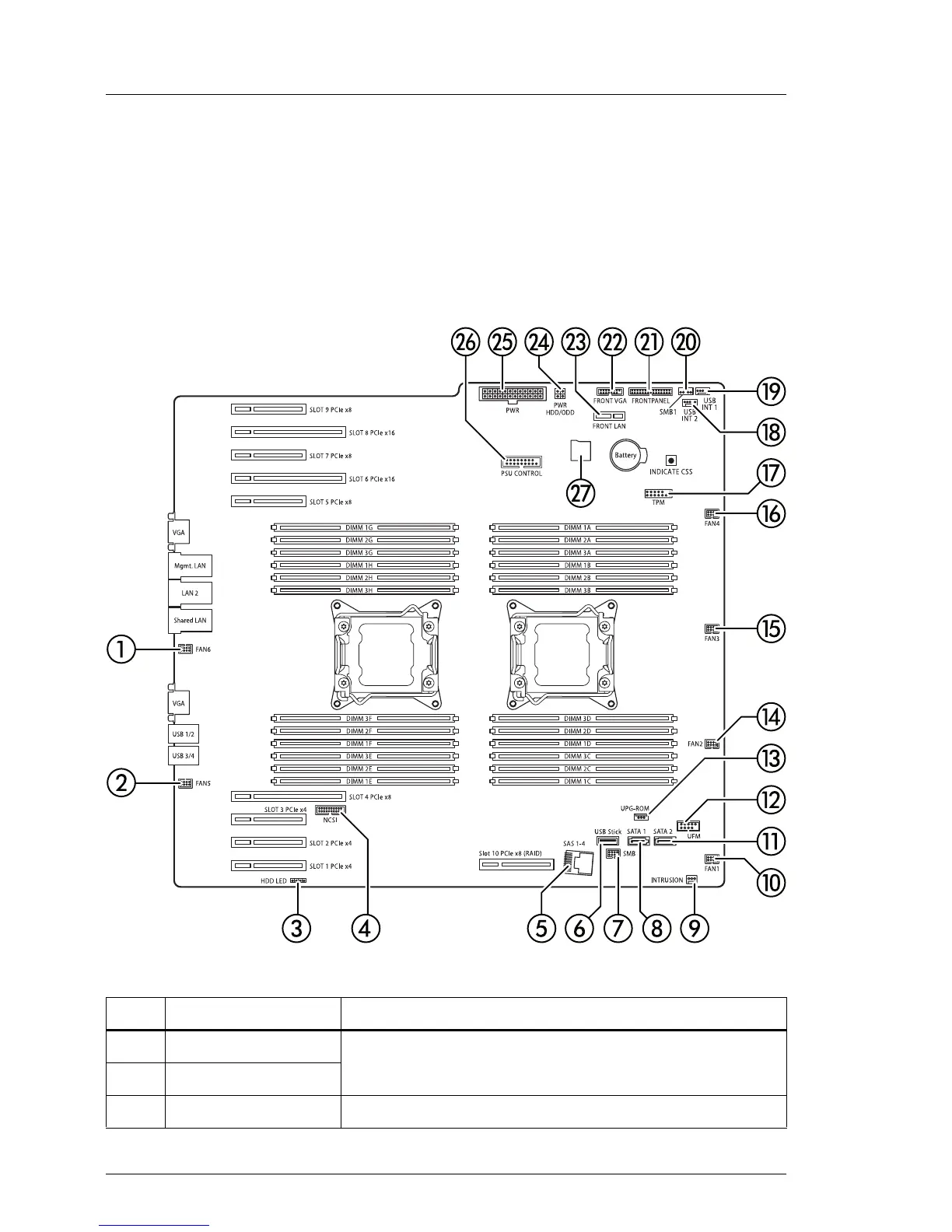

Figure 614: Internal connectors of system board D2949
No. Print Description
1FAN6
Fan connectors for hot-pluggable rear fans
2FAN5
3 HDD LED (not used)
