Ê Open the side / top cover as described in section "Opening the server" on
page 68.
Ê "Removing the system air duct" on page 81
Ê "Removing the system fan holder" on page 330
Ê Disconnect the SAS cables from the SAS RAID controller.
Ê Remove the SAS RAID controller from its slot as described in sections
"Removing the SAS RAID controller" on page 430 or "Removing expansion
cards" on page 357.
9.6.8.2 Removing the TFM module

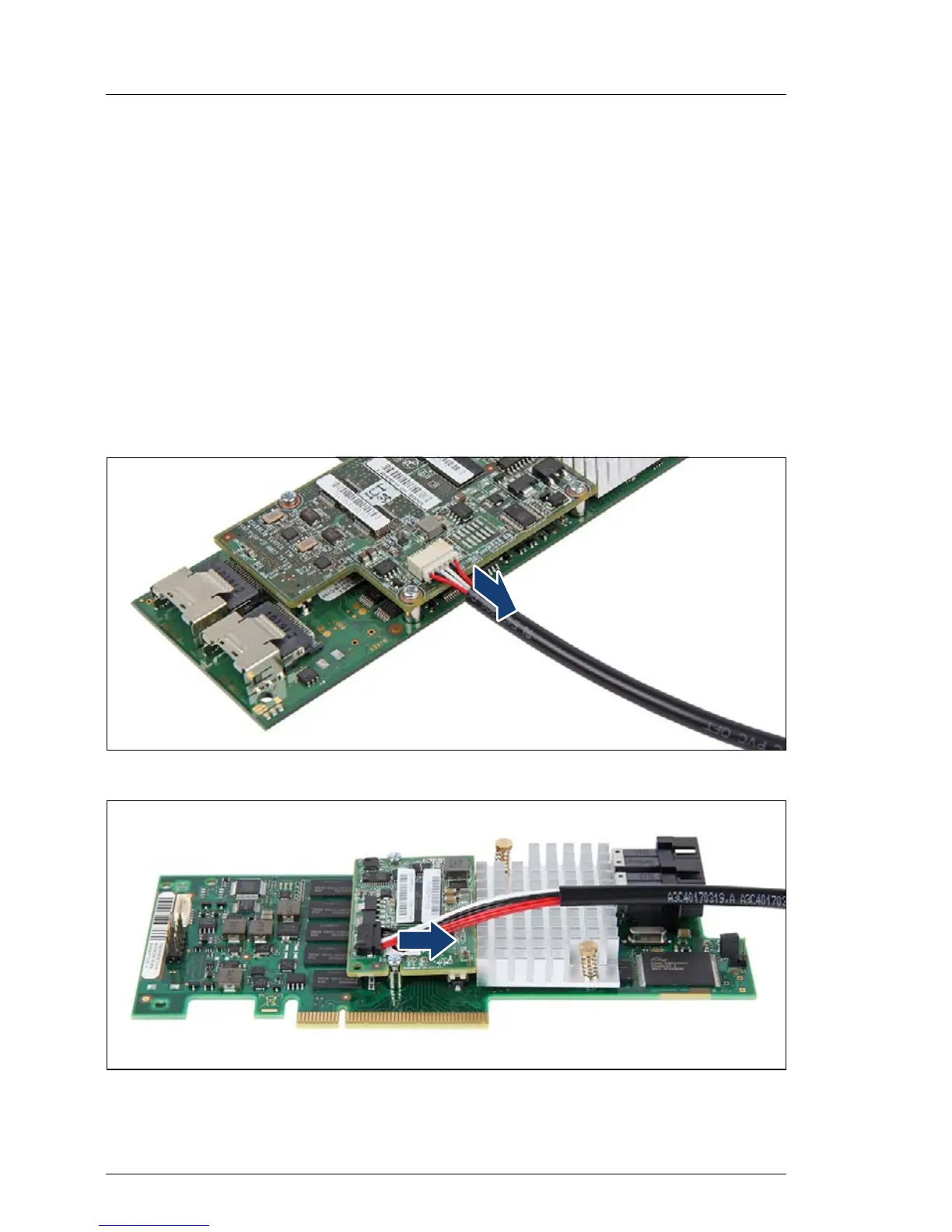

Figure 355: Removing the TFM adapter cable (RAID controller D3116)
Figure 356: Removing the TFM adapter cable (RAID controller D3216)
Ê Disconnect the FBU adapter cable from the TFM module.
