Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).

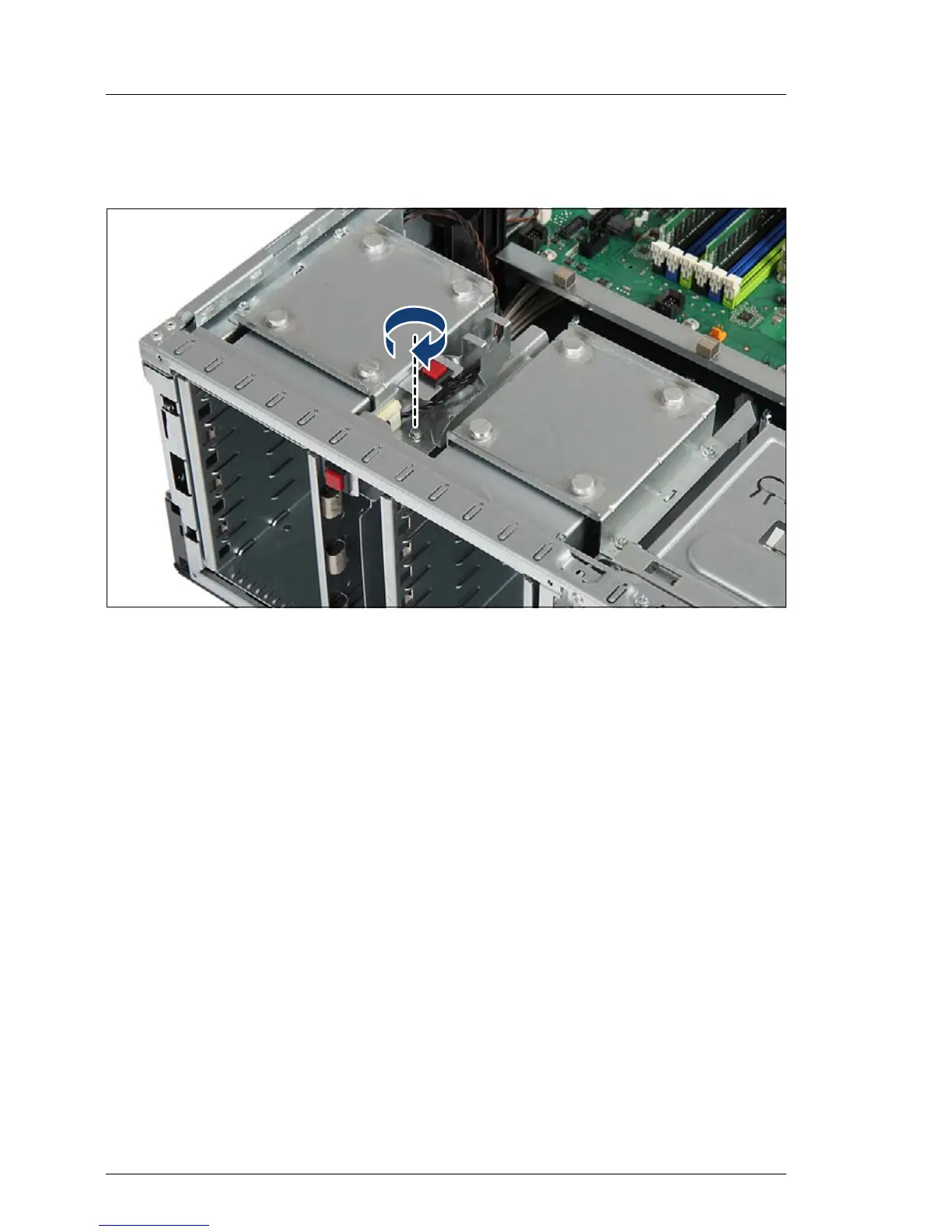

Figure 131: Installing the intrusion switch holder (B)
Ê Secure the intrusion switch holder on the HDD bay top cover with one
M3 x 4.5 mm screw.
7.2.9.7 Concluding steps
Ê "Installing the system fan holder" on page 331
Ê "Installing the system air duct" on page 83
Ê "Closing the server" on page 98
Ê Install HDD / SSD modules or HDD dummy modules into the additional HDD
slots as described in sections "Installing a 2.5-inch HDD / SSD module" on
page 208 and "Installing a 2.5-inch HDD / SSD dummy module" on
page 213.
I For detailed information on HDD mounting order, refer to section "2.5-
inch HDD / SSD configurations" on page 185.
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê "Connecting the server to the mains" on page 118
