Fujitsu PRIMERGY TX300 S8 User Manual

580 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Accessible drives
12.6.2.3 Removing the slimline ODD from the extension box

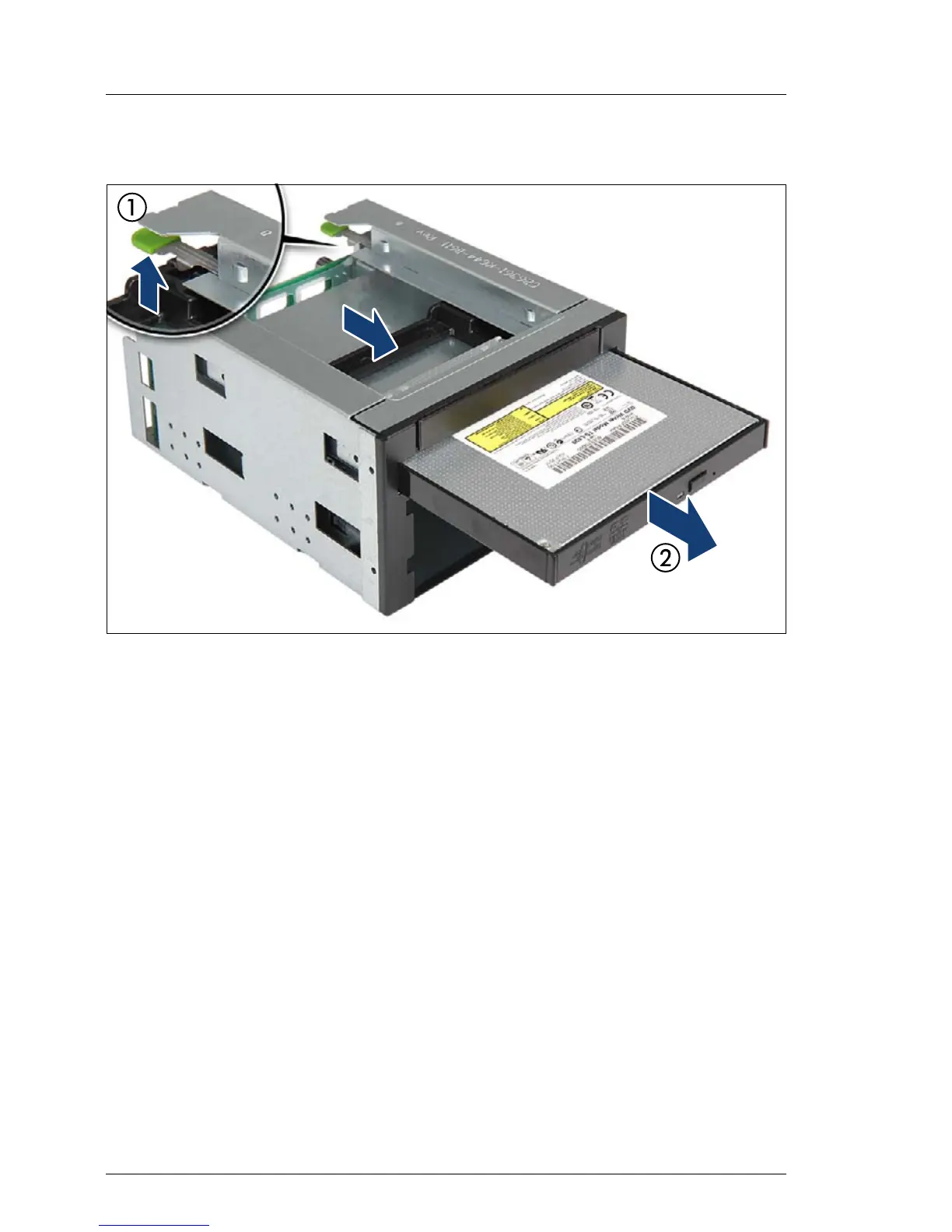

Figure 447: Removing the slimline ODD
Ê Press up on the locking tab to disengage the slimline ODD module (1).
Ê From inside the HDD extension box, press out on the slimline ODD module
and pull it out of its bay (2).
