TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 705
System board and components

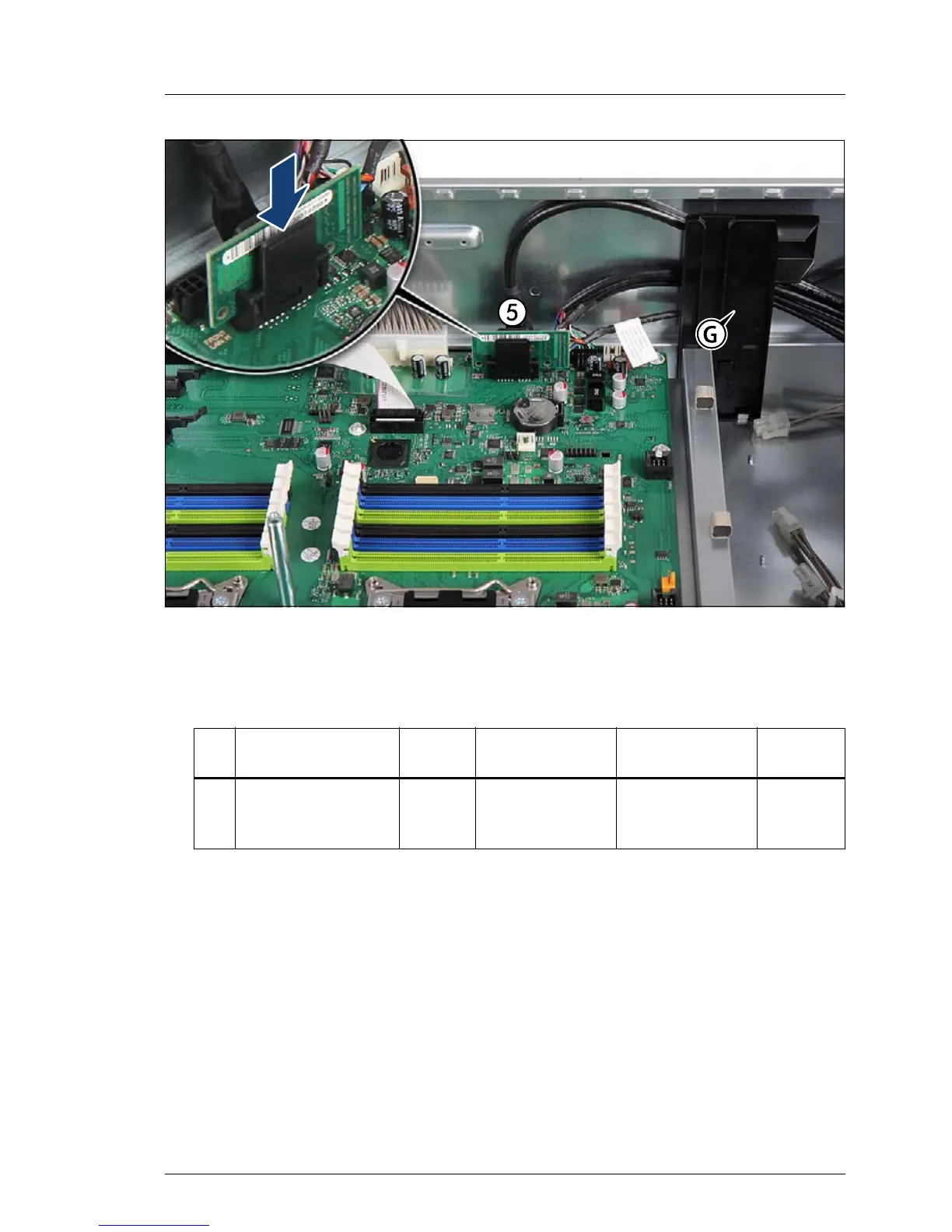

Figure 551: Connecting cables to the system board (B)
Ê If applicable, run the front LAN cable through the cable guide (G) as shown.
Ê Connect the front LAN board to the system board:
I For further information on how to assemble the front LAN board and
holder, refer to section "Preparing the front LAN board" on page 622.
No.
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
5
Front LAN cable
Y4025-V1
11
Front panel
module
System board
connector
FRONT LAN
16.2.1
