Furuno NavNet TZtouch3 Series User Manual

3. 3D DISPLAY, OVERLAYS
3-3
3.1.2 How to make the 3D view clearer
In the 3D view, the features of the terrain can be more easily recognized by using the
emphasis function. The emphasis function has two settings, automatic and manual.
Select one following the procedure below.
1. Go to the Home screen, then tap [Settings]→[Chart Plotter].
2. Find the [3D DISPLAY] section.

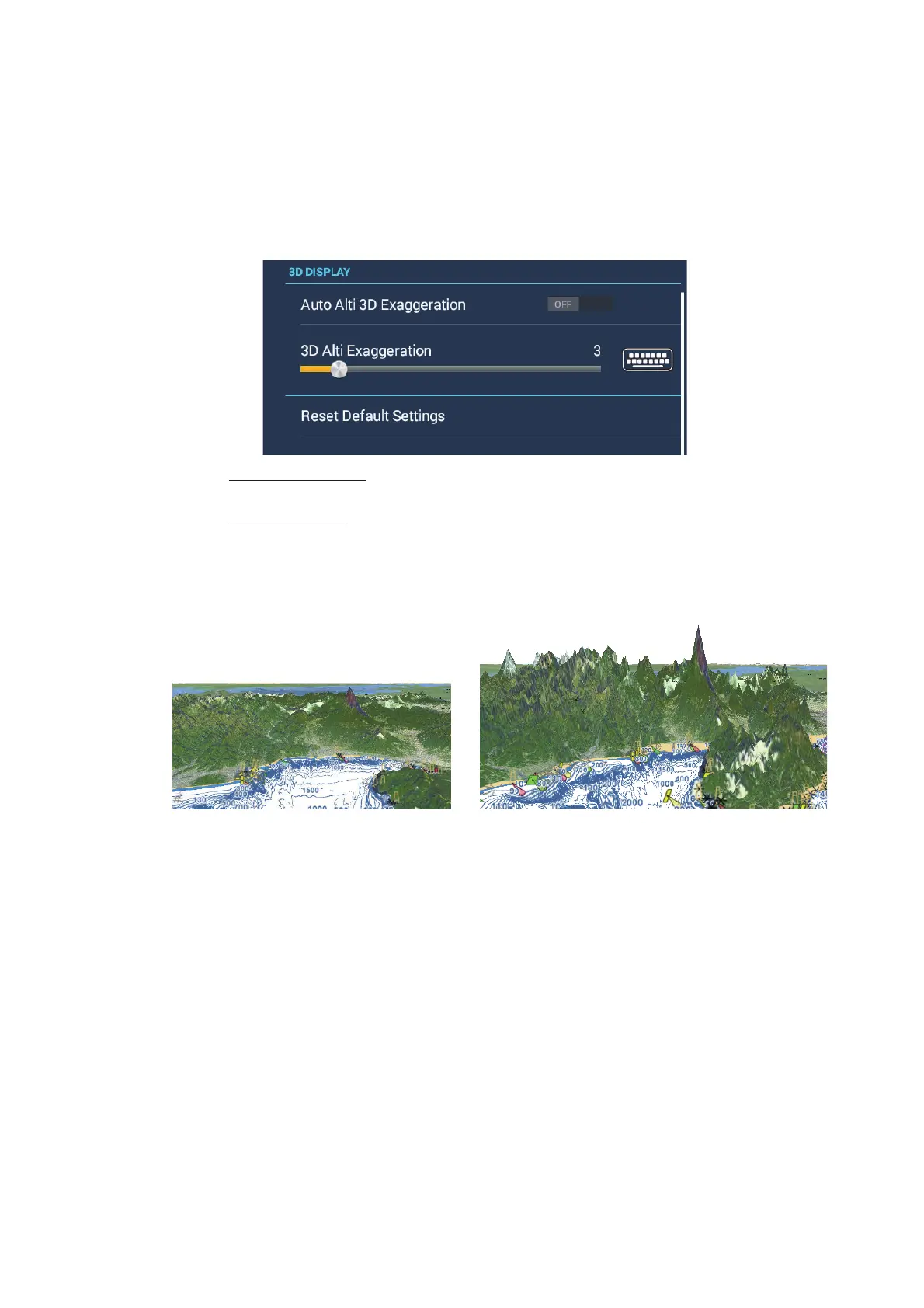

3. Automatic method
:
Turn on [Auto Alti 3D Exaggeration].
Manual method
:
Turn off [Auto Alti 3D Exaggeration]. Use the slider or software keyboard at [3D
Alti Exaggeration] to set the exaggeration level.
High gives the highest level of exaggeration. The example below compares the
same picture in low and high exaggerations.
4. Tap the close button on the title bar to finish.
High exaggeration
Low exaggeration
