Furuno NavNet TZtouch3 Series User Manual

1. SYSTEM INTRODUCTION
1-6
* The beep sound can be turned on or off with [Notify when NAVpilot is engaged] in
the menu. See section 2.10.8.

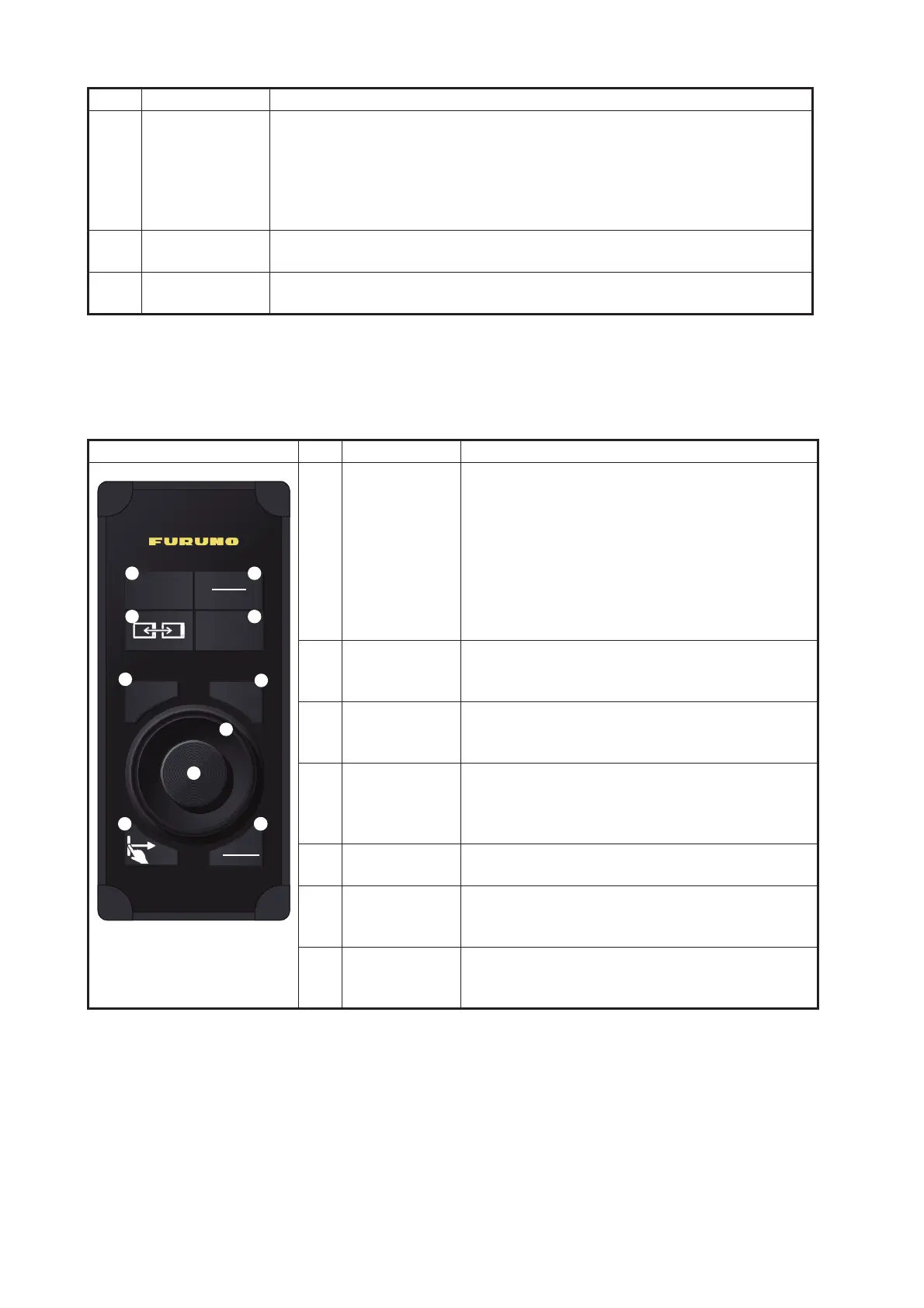

1.2.2 Remote Control Unit MCU-004
7 CANCEL/MOB
key
Short push:
• Closes the menu or dialog box.
• Stops the aural alarm.
• Ends the tool mode (End Route, End Move, etc.).
Long push:
• Enters the MOB mark (at the own ship’s position).
8 FUNC key • Short push: Does the task assigned to the “two finger tap function”
• Long push: Does the task assigned to the “two finger long tap function”
9 HOME/BRILL
key
Short push: Shows the Home screen.
Long push: Opens the [Quick Access] window.
No. Key Function
1 STBY•AUTO
key
Switches the steering mode of the FURUNO
NAVpilot series Autopilot between the Stand-by
and AUTO modes. When switching occurs, a
beep sounds* and a message informs you of
Navpilot mode change.
• Stand-by mode→AUTO mode: "Navpilot
Engaged".
• AUTO mode→Stand-by mode: "Navpilot
Disengaged".
2 HOME/BRILL
key
• Short push: Opens the Home screen.
• Long push: Opens the Brilliance/Power win-
dow.
3 CONTROL
key
Switches between displays that can be con-
trolled with the MCU-004 when multiple displays
are installed in the same network.
4 FUNC key • Short push: Performs the task assigned to
the “two finger tap function”
• Long push: Performs the task assigned to
the “two finger long tap function”
5 CURS•SCRL
key
Switches the function of the joystick between
the Cursor and Scroll modes.
6 CENTER key • Returns own ship to center of screen (Plotter/
Weather/Radar display).
• Cancels the echo history (Fish finder display).
7 Rotary knob • Selects an item from the [Slide] menu, [Set-
tings] menu, pop-up menu.
• Zooms in/out.
No. Key Function
7
8
HOME
BRILL
STBY
•
AUTO
STBY
•
AUTO
FUNC
1 2
43
CURS
•
SCRL
CENTER
5
6
9
CANCEL
MOB
10
