1. SYSTEM INTRODUCTION
1-18
1.7 How to Edit the Display Icons
The default Home screen arrangement provides display icons in a configuration ac-
cording to the equipment that you have in your network. If the arrangement does not
meet your requirements, you can rearrange the icons to suit your needs. You can have
a maximum of 16 display icons, and a screen can be shown in full screen, 2-way, 3-
way or 4-way split screens.
Note: Some displays cannot be shown in multi-split screens. An icon is greyed out
when it cannot be selected to a multi-split screen. See section 1.7.1.
The displays available depend on the display division selected and your system con-
figuration. The table below outlines the display divisions and available displays.
* Not available in left-side screen in a three-way split screen.

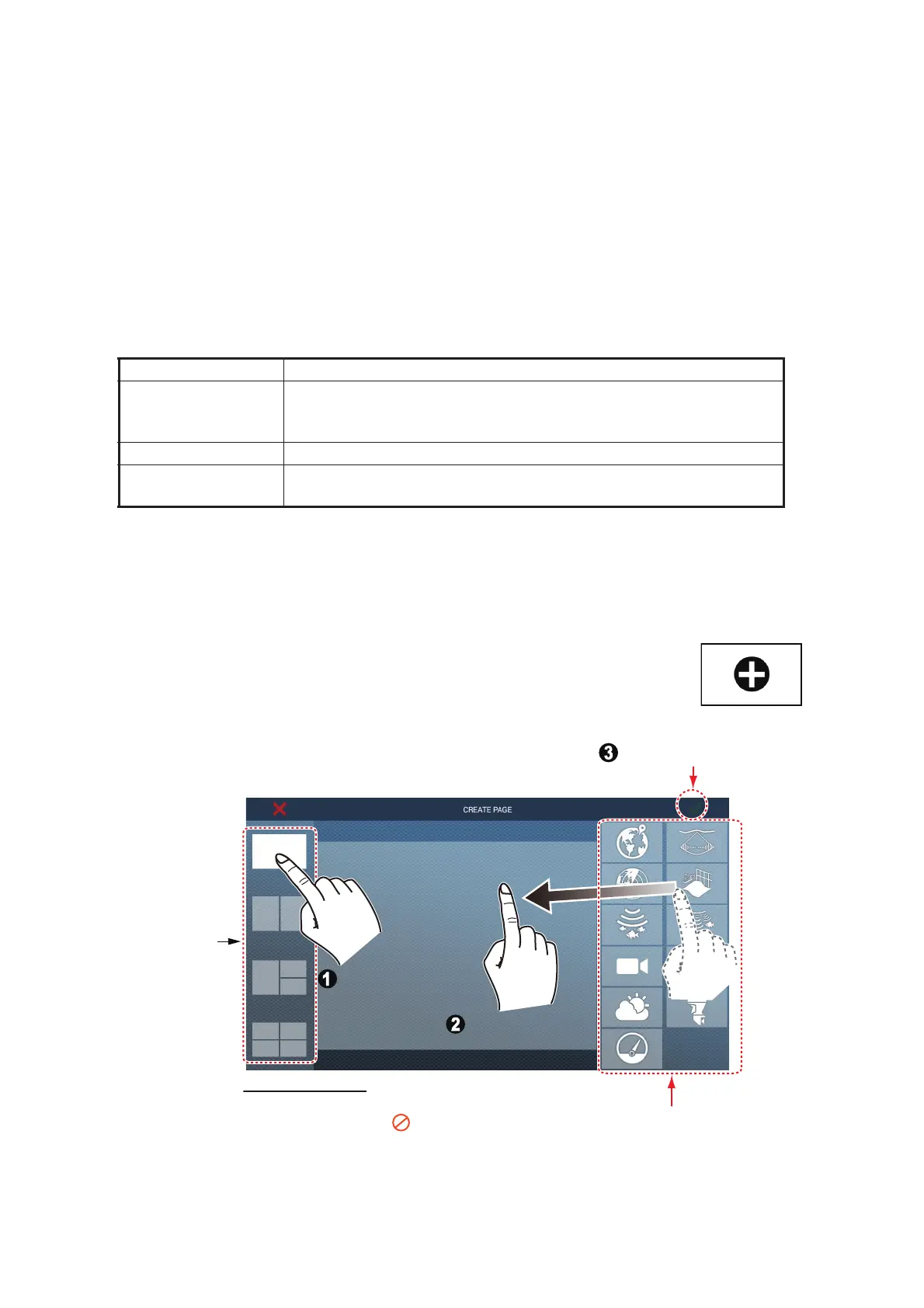

1.7.1 How to add a new display icon
1. Tap the [Home] icon to show the Home screen.
2. Tap the + icon, shown right. (If the icon is not shown, this means
that all available display icons (16) have been used. Erase an
unnecessary icon to make room. See subsection 1.7.2.)
3. Follow the instructions below to create a display icon.
After saving, the arrangement is then opened on the screen and the display icons on
the Home screen are updated according to your arrangement.
Display division Available displays
Full screen Plotter, weather, radar, fish finder, instrument, camera, multi beam
sonar, side scan, cross section, 3D history, Yamaha Engine Manag-
er
Two-way split Plotter, radar, fish finder, multi beam sonar, side scan
Three-way, four-way
split
Plotter, radar, fish finder, instrument*, camera*, multi beam sonar,
side scan, cross section*, 3D history*, Yamaha Engine Manager
Display
choices
Display
division
choices
Tap to save icon.
Custom display areaCustom display area
Drag display
division icon to
screen center.
Drag display
division icon to
screen center.
Drag display type
(icon) to screen
center.
Drag display type
(icon) to screen
center.
Available displays (Unavailable displays are greyed out)
In the three-way split screen, unavailable displays are
denoted by showing “ ” when dragging the unavailable
display (icon).
