2. CHART PLOTTER
2-13
2.10 Alarms
The various Chart Plotter alarms alert you (with audiovisual alarms) when the condi-
tions specified are met. These alarms are:

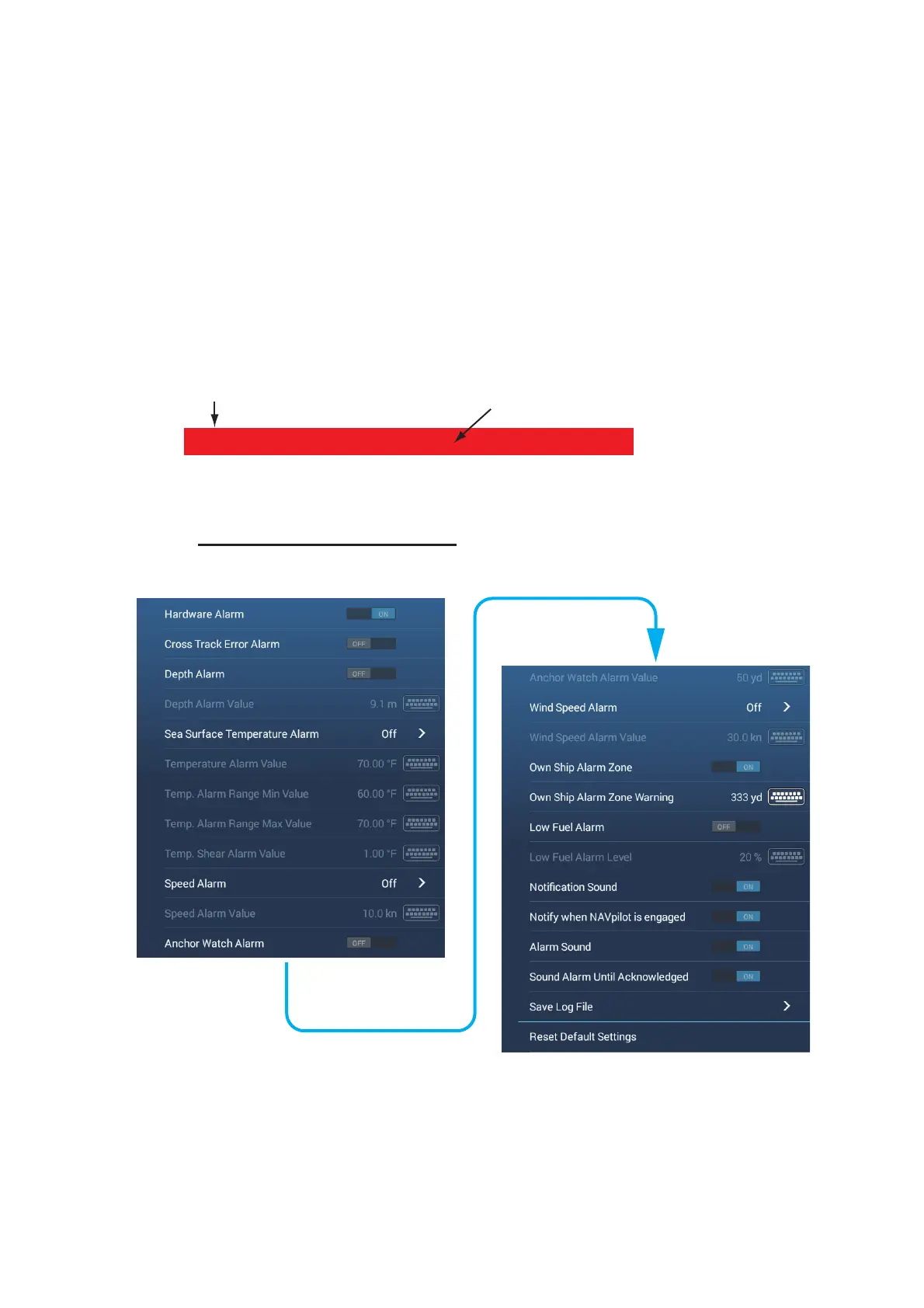

When an alarm is generated, the name of the offending alarm appears in the status
bar (red background with yellow text) at the top of the screen and flashes. If [Alarm
Sound] ([Alarm] menu) is active, the unit beeps.
Note: If [Sound Alarm Until Acknowledged] is set for [OFF], the unit continues to beep
until the cause of the alarm is removed.
How to open the [Alarm] menu
1. Open the home screen, then tap [Settings]→[Alarm].
• Cross track error alarm • Depth alarm
• Sea surface temperature alarm • Speed alarm
• Anchor watch alarm • Wind speed alarm
• Boundary alarm (see section 4.17) • Low fuel alarm
Anchor Alarm
Status bar
Alarm indication (ex. anchor watch alarm)
