1. SYSTEM INTRODUCTION
1-15
1.5 Home Screen
The Home screen is where you access functions and menus, select displays, and
check sensor status. Tap the [Home] icon at the top left corner to show the Home
screen. The Home screen is automatically closed, and the previous operation display
restored, when no operation is detected for approx. one minute.

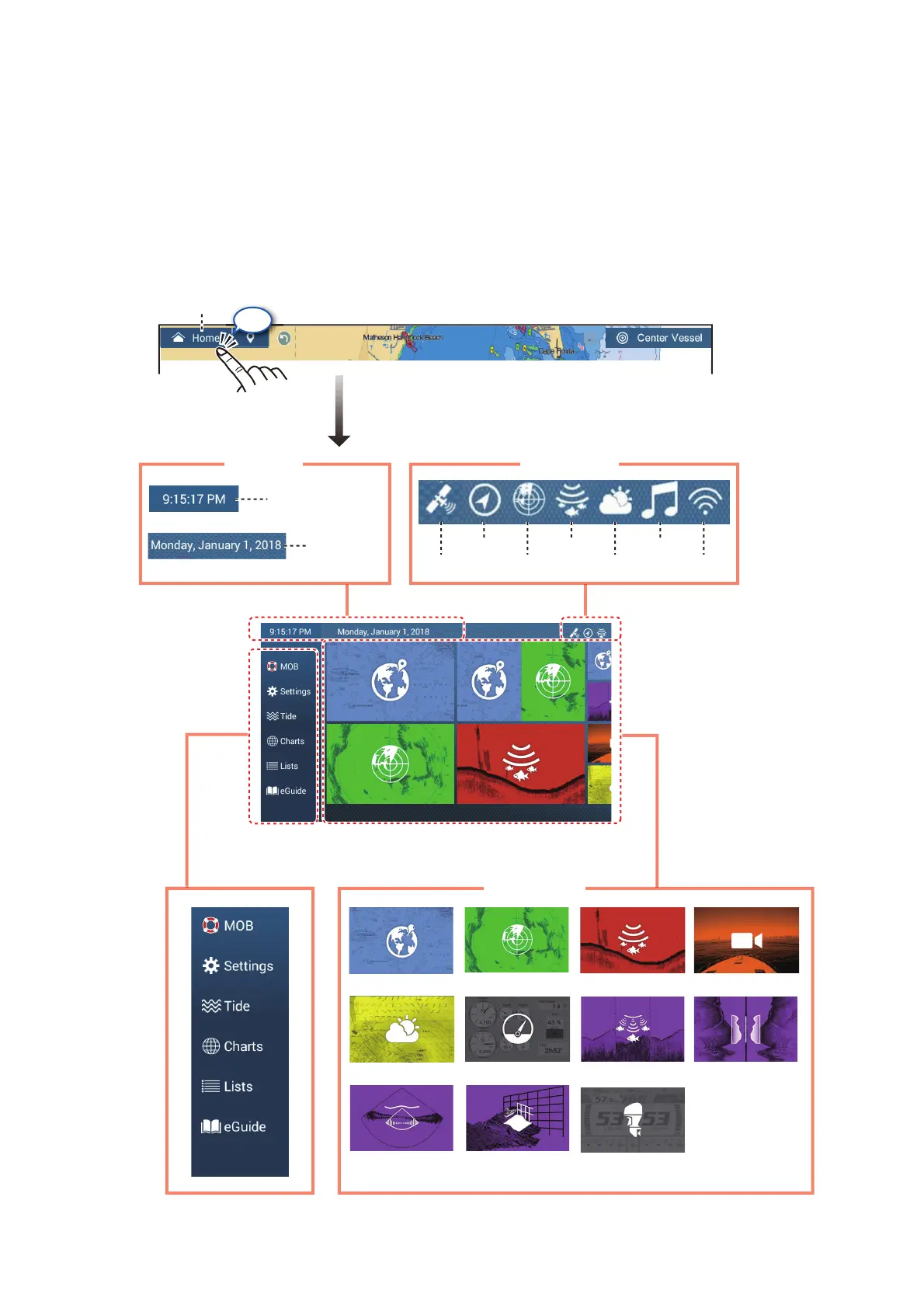

The figure below shows an example display with all sensors and corresponding devic-
es connected.
Plotter Radar Sounder
Camera
Weather
Instrument
Multi Sounder Side Scan
Cross Section 3D History YAMAHA
Engine Manager
Time
Date
GPS
Heading
Radar
Sounder
SiriusXM
Fusion
WiFi
Functions
Home screen
Time, date
Sensor icons
Display icons
Tap
To Next Page
