2. CHART PLOTTER
2-9
2.8 Multiple Chart Plotter Displays
Three chart plotter displays can be shown on one screen. With three chart plotter dis-
plays, you can see the conditions around your ship on both short and long ranges. Al-
so, you can see how your ship moves toward your destination from more than one
angle. For example, you can show one display in 3D and the other two in 2D.
The following features can be adjusted individually.

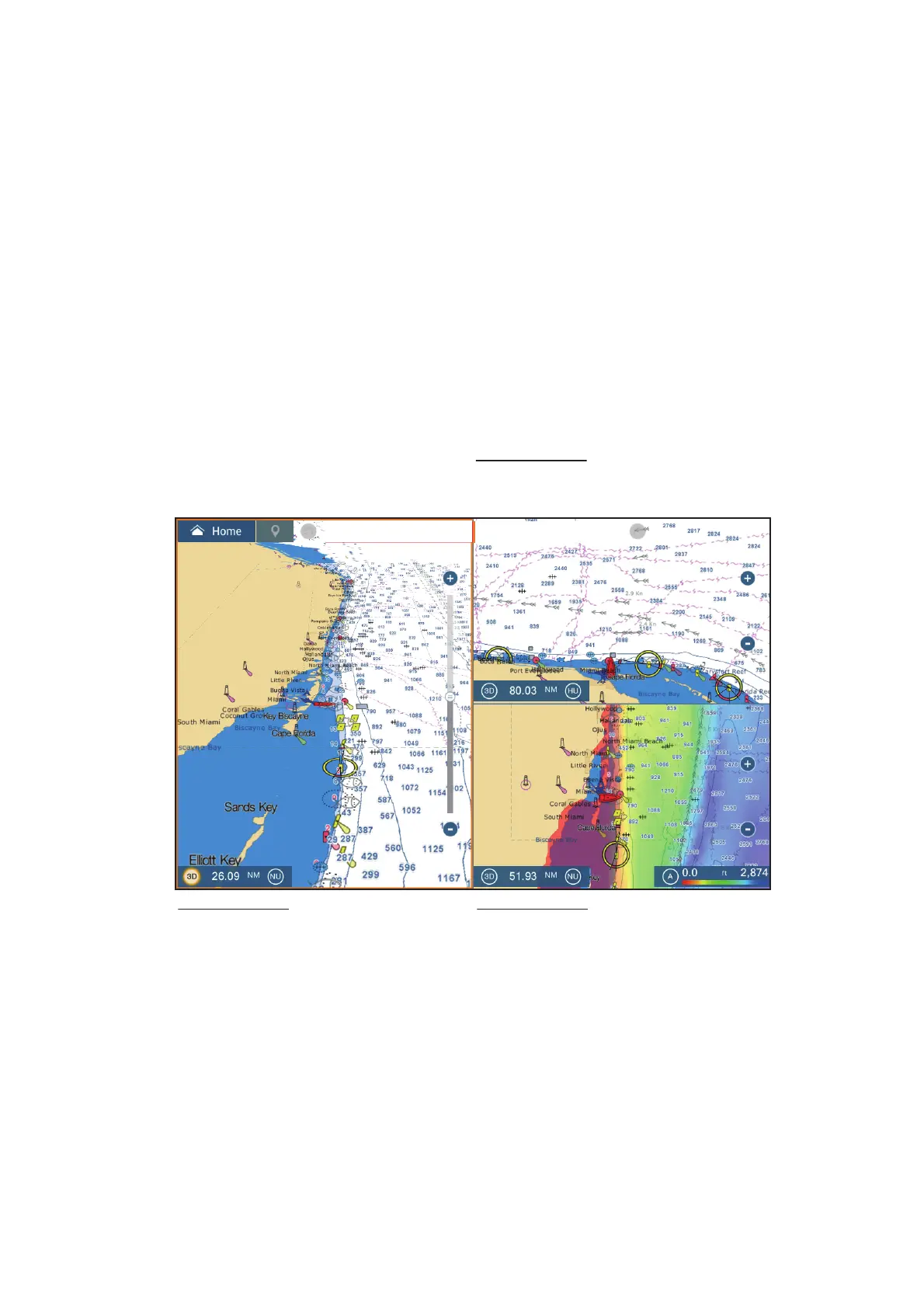

The following example shows a three-way split plotter display.
• AIS • ARPA • Display range
• Chart orientation • Chart type • Scroll the chart
• Overlays (radar, satellite photo, depth shading, tide icon, tidal current icon, ACCU-
FISH
™
(see section 7.14), points, routes, tracks)
• 2D and 3D: Independent orientation (2D, 3D) and view point (3D) are possible.
Plotter display 1
Display range: 26.09 NM
Orientation: North-up
Perspective: 3D
Plotter display 3
Display range: 51.93 NM
Orientation: North-up
Perspective: 2D
Overlay: Depth shading
Plotter display 2
Display range: 80.03 NM
Orientation: Head-up
Perspective: 2D
