7. FISH FINDER (SOUNDER)
7-3
How to switch between the low- and high-frequency displays
You can switch between the low-and high-frequency displays
from the pop-up menu. Open the pop-up menu, tap [Frequen-
cy], then turn on [HF] or [LF] as appropriate.
Note: Using the same method mentioned above, you can
switch the video on the dual frequency display and zoom dis-
play.
Dual frequency display: Swaps the low-frequency and high-frequency images (de-
fault setting: low frequency on the left and high frequency on the right).
Zoom display: Switches between single images (low frequency or high frequency).

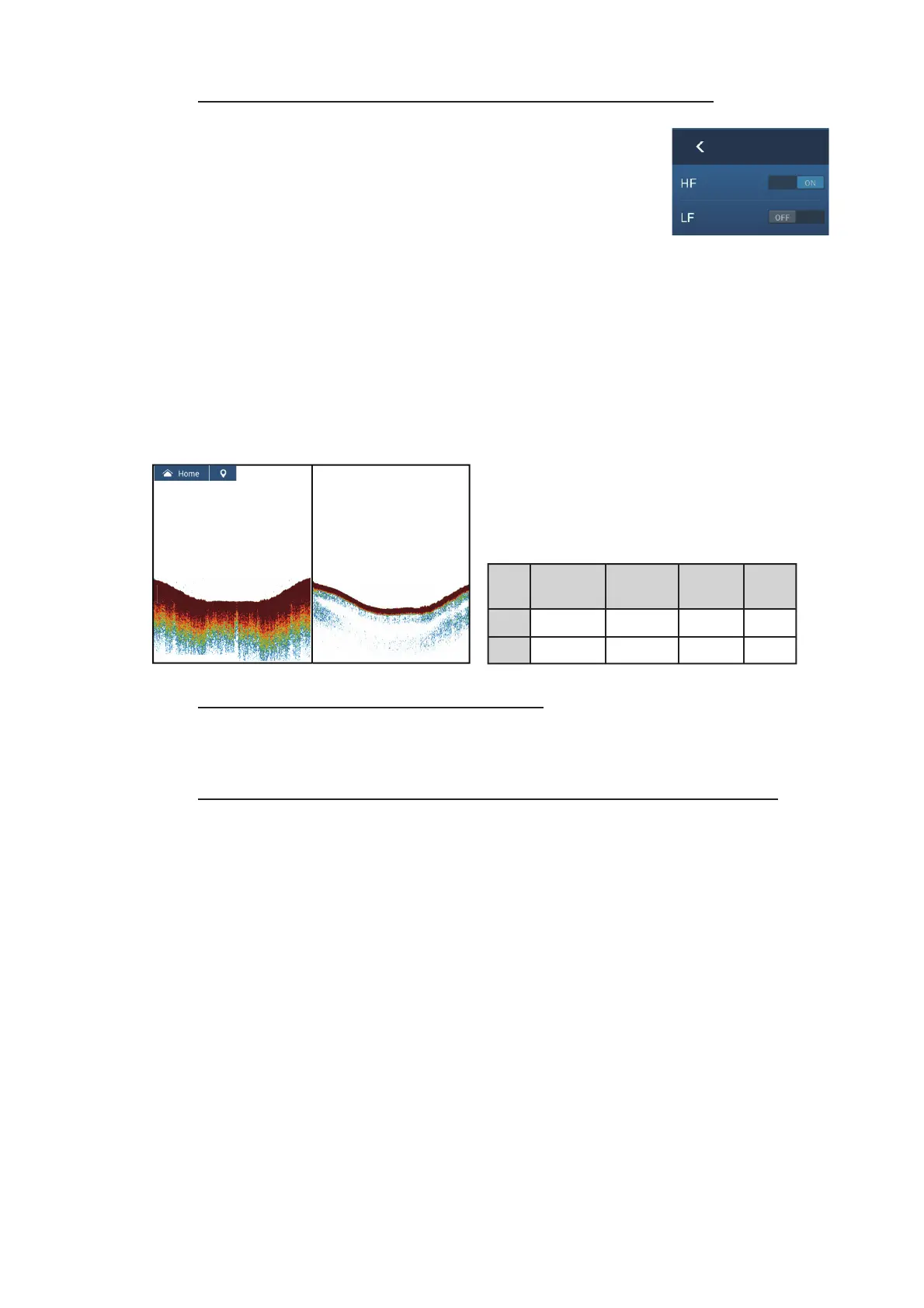

7.3.2 Dual frequency display
The dual frequency display provides both low and high frequency pictures, the low fre-
quency on the left half (default). Use the dual frequency display to compare the same
picture with two different sounding frequencies.
How to select the dual frequency display
Tap the screen to show the pop-up menu. Tap [Mode], then turn on [Dual Freq.]. The
frequency selected with [Frequency] appears on the right half of the screen.
How to set separate ranges for the low- and high-frequency displays
1. Open the [Fish Finder] menu.
2. Turn on [Split Range]. A message informs you that ACCU-FISH
™
will be disabled
when the split range is used.
3. Tap [OK].
4. Tap the close button on the title bar to finish.
5. Pinch the high- and low-frequency displays to change their range.
Note: The slider bar can be used to adjust the range of the image shown on the
left-half of the screen.
Freq.
(kHz)
Low
High
Beamwidth Resolution
Detection
range
Bottom
tail
Wide
Narrow
Low
High
Deep
Shallow
Long
Short
Low
frequency
Low
frequency
m
LF/HF
40.4
50/200 kHz
