6. RADAR
6-16
4. Tap [Resize]. Drag icons appear at the corners of the guard zone.
5. Drag the icons to adjust the guard zone.
Note: To create a 360 degree zone about own ship, set all four drag icons in the
same direction.
6. Tap [Done] at to finish. The icons disappear.

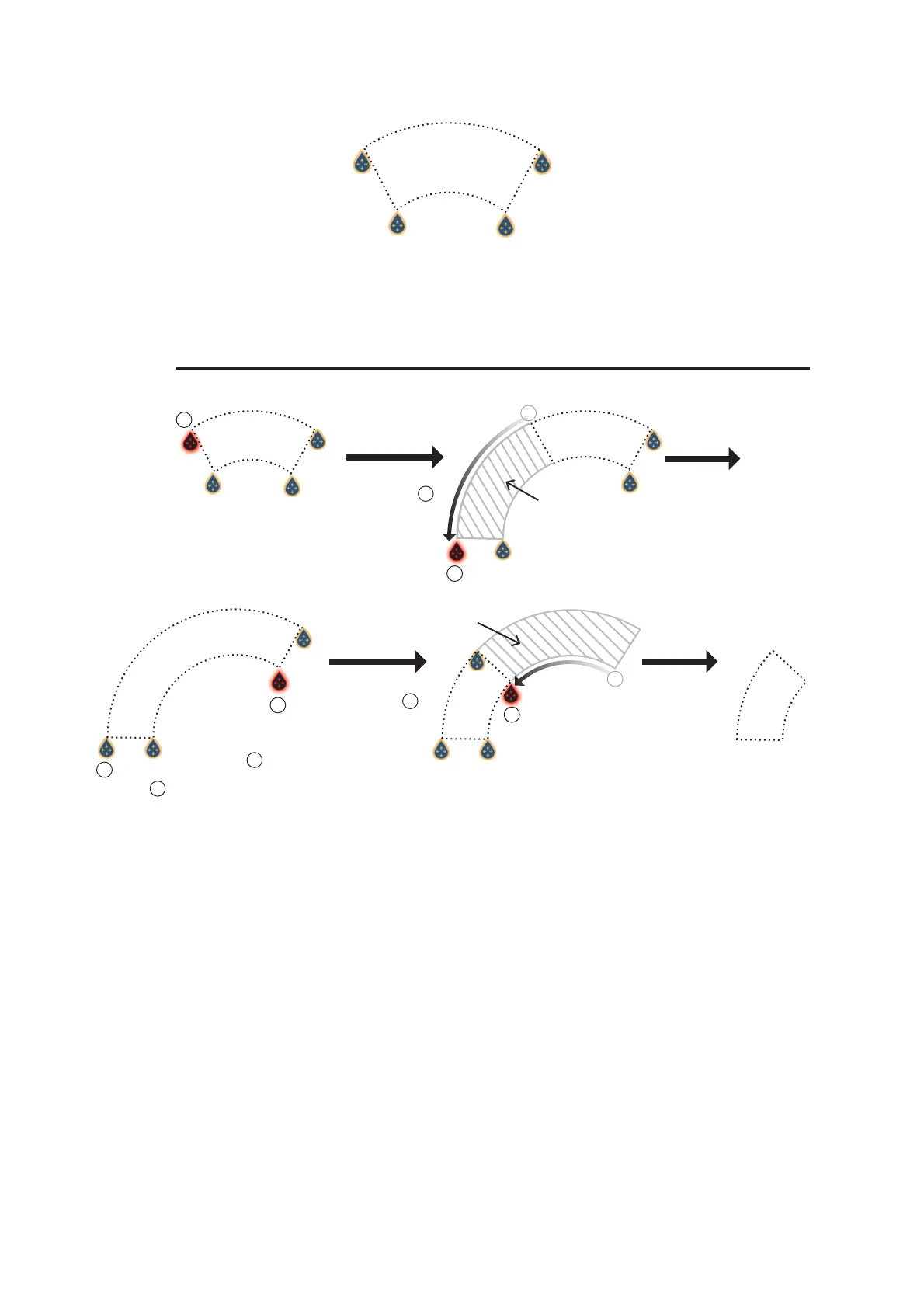

How to set a guard zone with TZT12F, remote controller (MCU-002/004/005)
6.14.2 How to activate or deactivate a guard zone
1. Tap on a line of the guard zone to show the pop-up menu.
2. Turn [Alarm] on or off. The alarm is active when the guard zone lines are solid and
the lines are dashed when the alarm is deactivated.
When a target (including target with echo trail) enters an active zone, the aural alarm
sounds (if active), the target flashes, and the message "TARGET ALARM" flashes in
the status bar. Tap the status bar to silence the aural alarm and stop the flashing mes-
sage. The message remains in the status bar and the target continues to flash until
the target leaves the guard zone or the alarm is deactivated.
You can mute the audio alarm by turning off [Alarm Sound] in the [Settings]→[Alarm]
menu. (see subsection 2.10.8).
6.14.3 How to hide a guard zone
Open the [Layers] menu and turn [Guard Zone 1] or [Guard Zone 2] off. The guard
zone is erased from the screen.
A
㻭
B
A
B
Only the icon at
the top is
displayed in red.
Move the
position of A
using cross
cursor.
Changed
position of
guard zone
Press the
RotoKey
TM
or joystick
to confirm
the position.
Press the RotoKey
TM
or joystick to confirm
the position, and then
tap [Done] at the top
right of the screen.
Changed
position of
guard zone
Move the
position of B
using cross
cursor.
Position A is confirmed.
Red icon is
displayed at
the B position.
To Next Page
