2.3 Orientation Mode
The chart can be shown in head-up or north-up orientation. Tap the orientation mode
switch, [HU] or [NU], whichever is shown, at the bottom left corner to change the ori-
entation mode.
• North Up: North is at the top of the screen. When your heading changes, the boat
icon moves according to heading. This mode is for long-range navigation.
• Head Up: Displays the chart with the current compass heading of your ship at the
top of the screen. The heading data from a compass is required. When the heading
changes, the boat icon remains fixed, and the chart picture rotates according to
heading.
2.4 How to Move the Chart
You may need to move the chart when the own ship icon is off-screen, you want to
view an area off-screen or enter a mark off-screen. The chart must be moved to do
this.
To move the chart, drag the on-screen display and show the area you want to work
with.
Note: To return your ship icon to the center of the display and show the immediately
surrounding area, tap the [Center Vessel] icon at the top-right corner of the display.

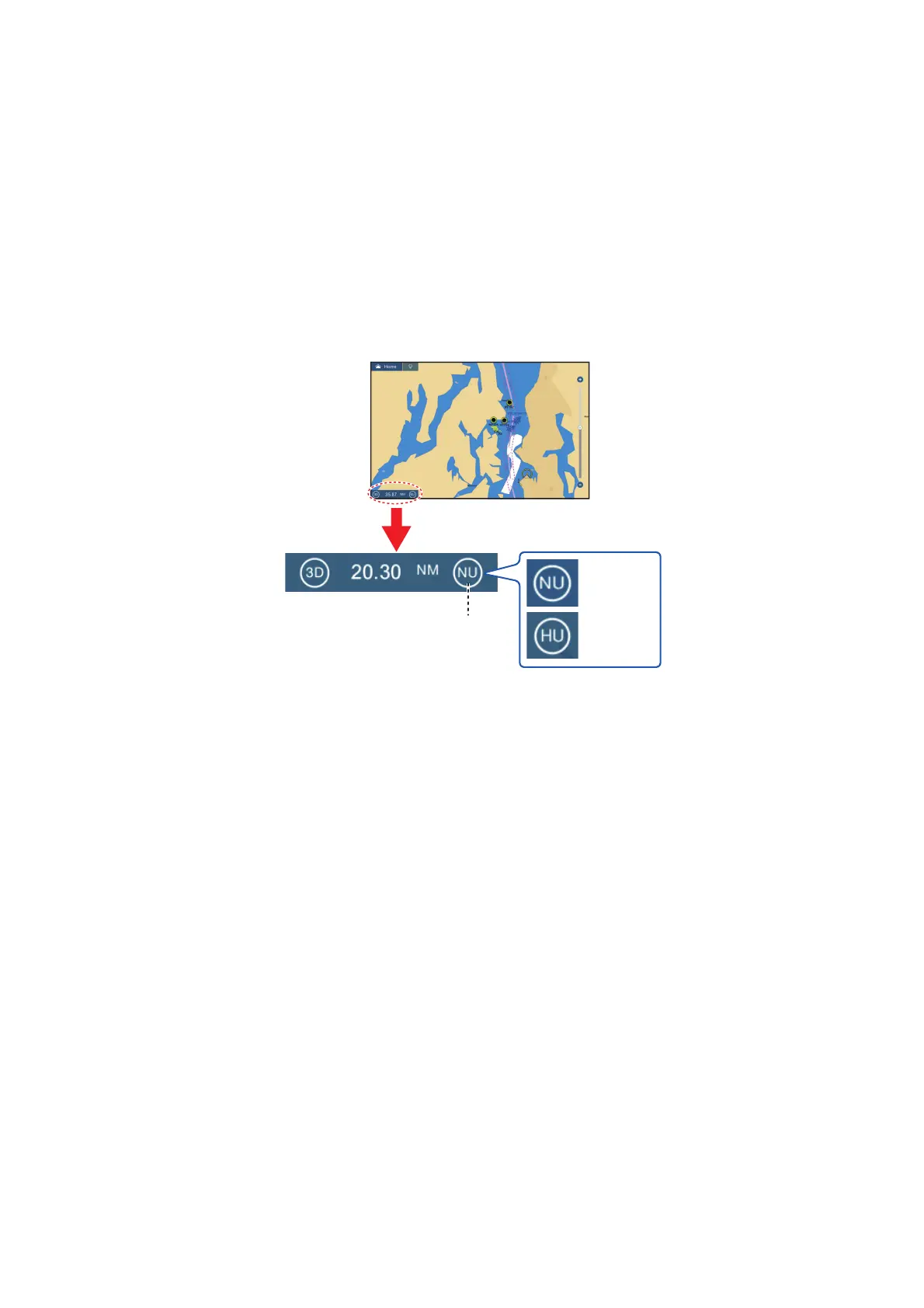

Orientation
mode switch
: North-up
: Head-up
