1. SYSTEM INTRODUCTION

1-17

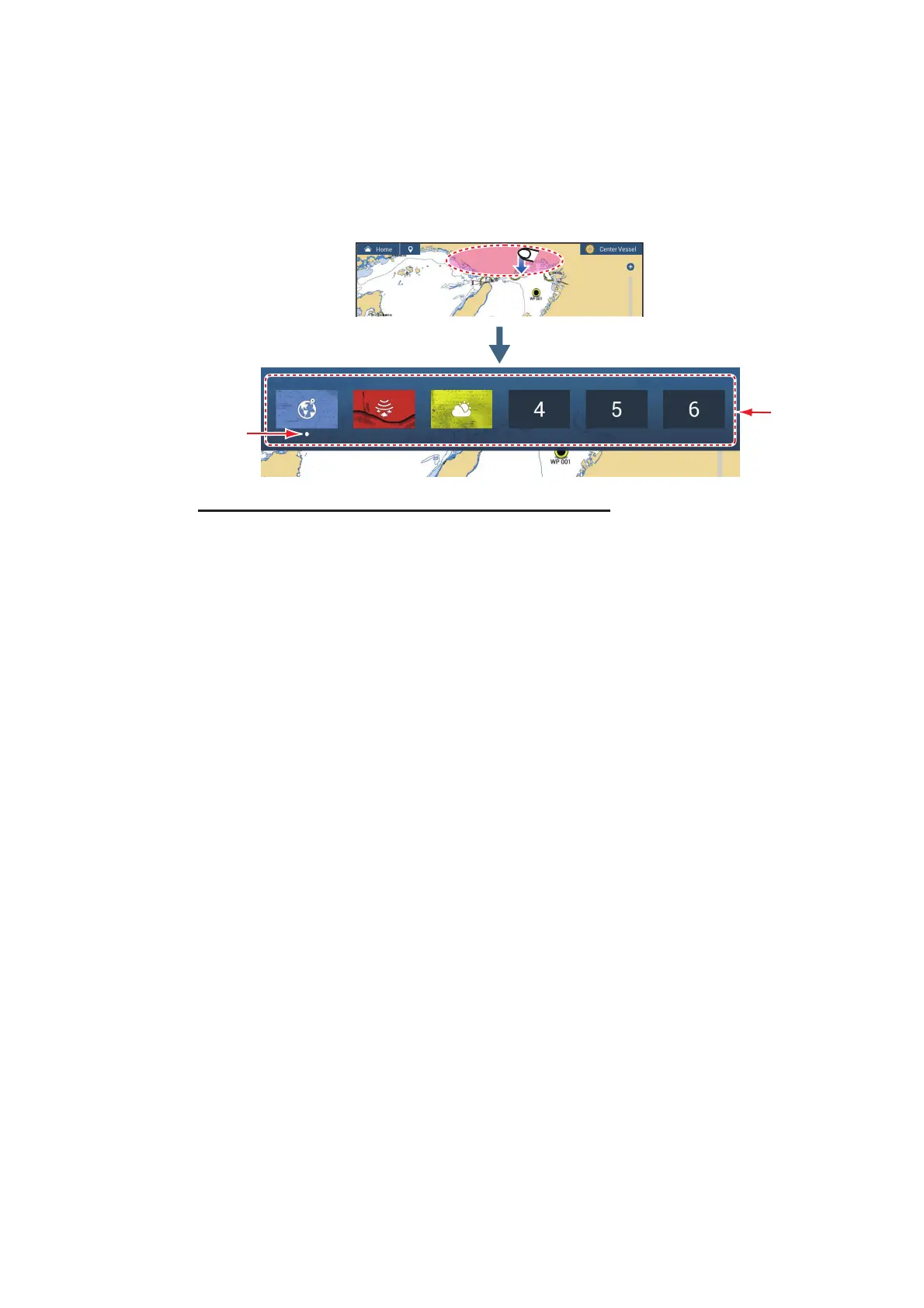

1.6.2 How to select a display from the quick page

The quick page lets you change the display from the current display without having to

go the Home screen.

To show the quick page, swipe the top of the screen downward. Tap desired display

icon to change the display.

How to add the current display to the quick page

Show the quick page, long tap the desired icon. The icon corresponding to the current

mode appears in the quick page.

Quick

pages

Dot indicates

display currently

in use.

Swipe
